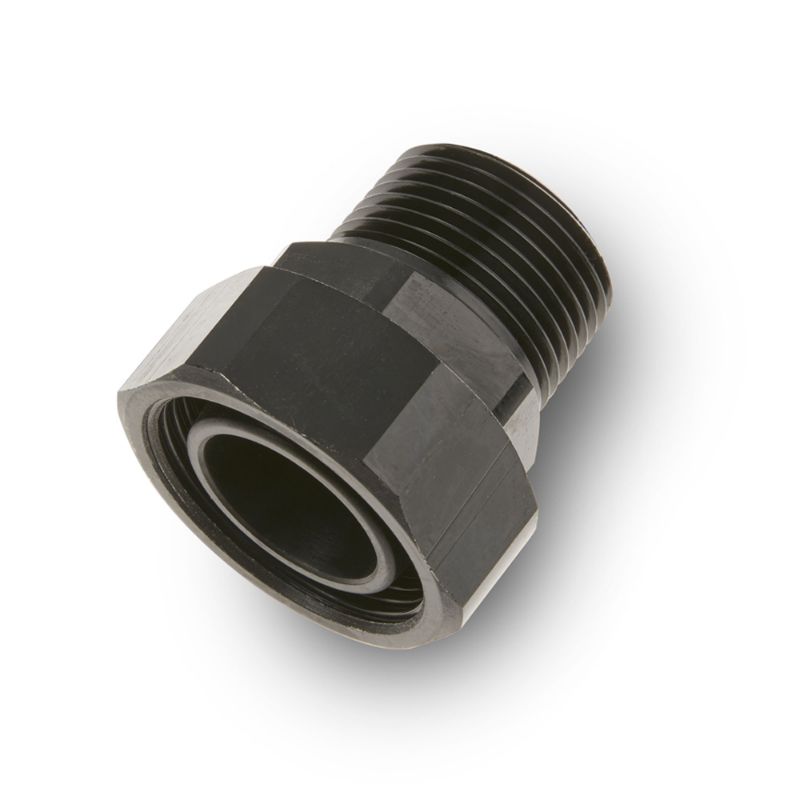

Parker 6611 40 35 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. 6611 40 35

$86.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Transair
Product Type	Compressed Air Piping	Shape	Straight
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Body Material	Treated Aluminum	Specifications Met	EN 755.2
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Size	1 inch	Assembly Time	0.17 Hours
Connection 1 Size	1-1/2 inch	Connection 2 Type	Male NPT
Weight	0.48 kg	Configuration	Port to Swivel Port
Product Style	Stud Fitting with Nut	Pipe O.D. (mm)	40
Pipe O.D. (inch)	1-1/2	Connection Thread Size (inch)	1
Silicone Free	Yes	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
