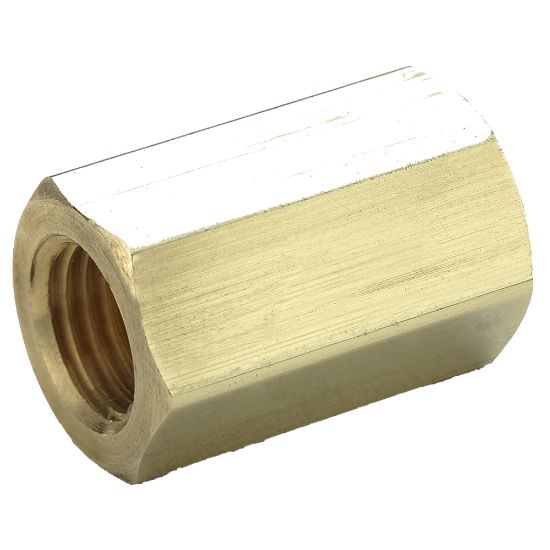

Parker 660FHD-6 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. 660FHD-6

$11.98

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Minimum Operating Temperature	-53 °C	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	2800 psi
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 1 Thread Size	5/8-18 inch
Connection 2 Thread Size	5/8-18 inch	Connection 1 Tube Outside Diameter	3/8 inch
Connection 2 Tube Outside Diameter	3/8 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 3 Thread Size	NA
Shape	Union	Product Style	Female Flare to Female Flare
