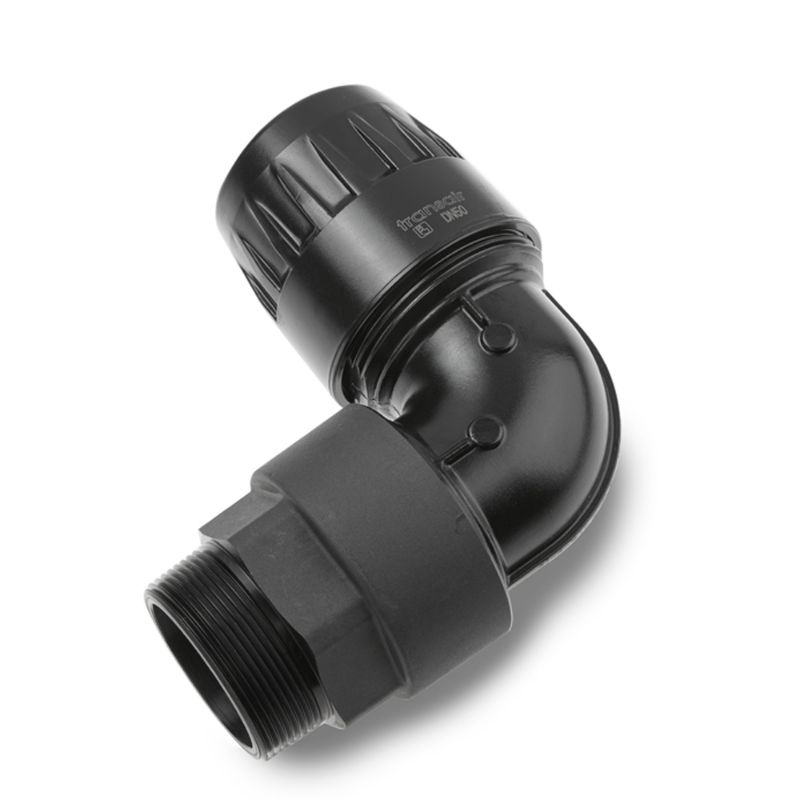

Parker 6609 63 41 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6609 63 41

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Technology	Pneumatics	Body Material	Treated Aluminum
Specifications Met	EN 573.3	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	232 psi	Maximum Operating Temperature	185 °F
For Fluid Type	Air	Connection 1 Type	Pipe
Quantity per Box	1	Shape	Elbow 90°
Connection 1 Size	2-1/2 inch	Connection 2 Size	2-1/2 inch
Weight	0.0 kg	Assembly Time	0.17 Hours
Configuration	Pipe to Port	Product Style	Stud Fitting
Connection 2 Type	Male NPT	Pipe O.D. (mm)	63
Pipe O.D. (inch)	2-1/2	Silicone Free	Yes
Connection Thread Size (inch)	2-1/2	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
