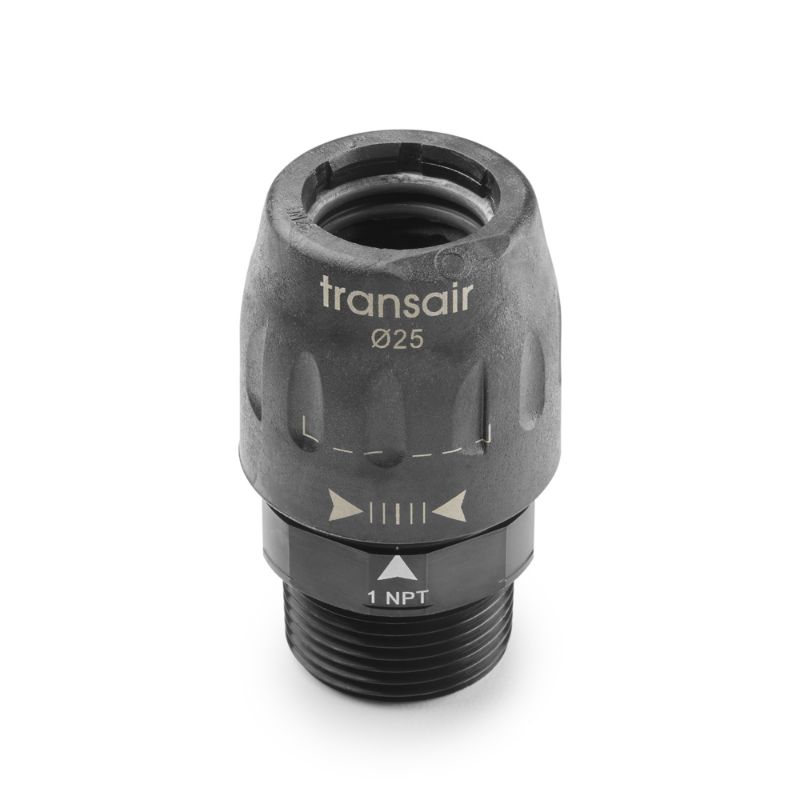

Parker 6605 17 13 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6605 17 13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Specifications Met	EN 573.3
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Body Material	Technical Polymer
Application	Inert Gas	Weight	0.22 lb
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	16.5 mm
Connection 2 Size	R 1/4 inch	Connection 2 Type	Male BSPT
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Silicone Free	Yes	Connection Thread Size (inch)	1/4
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A
