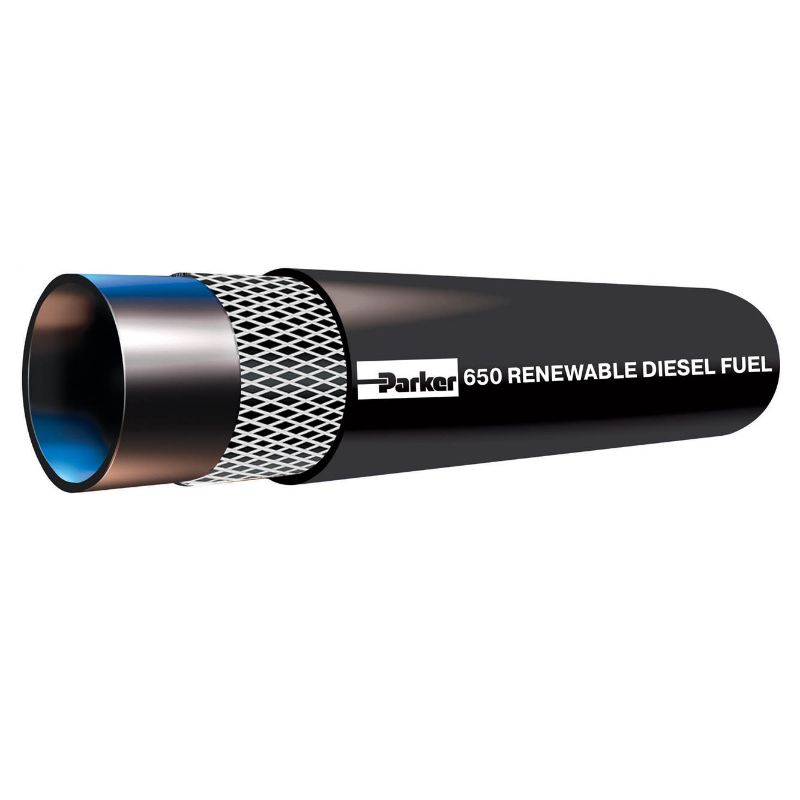

Parker 650-12-RL - 650 Renewable Diesel Fuel Hose

650 Renewable Diesel Fuel Hose not only handles all gasoline and diesel requirements, but it is also compatible with renewable biodiesels up to 100%. 650 is compatible with HY series fittings and available with J2044 connections.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 650-12-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Maximum Operating Pressure	300 psi
Hose Inside Diameter	19.1 mm	Minimum Bend Radius	180 mm
Specifications Met	SAE J30R7	Application	Media Transfer
Media	Fuels	Weight	0.50 kg/ft
Cover Material	Black synthetic rubber	Hose Inner Tube Material	Black synthetic rubber
Hose Reinforcement Material	Multiple aramid plies	Hose Outside Diameter	1.13 inch
