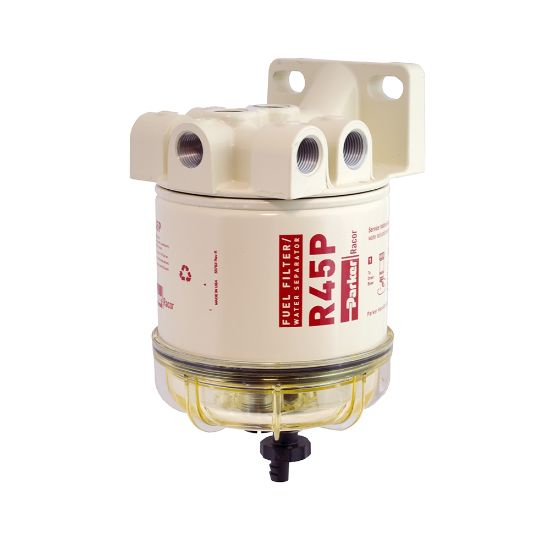

Parker 645R30MTC - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 645R30MTC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Maximum Operating Pressure	30	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Clean Pressure Drop	0.01
Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron	Depth	114.0
Width	114.0	Weight	1.07
Height	215.0	Micron Rating	98% @ 30 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Integral Primer Pump Included	No Pump
Location	EMEA region only	Flow Rate	45 gph (170 lph)
Port Size	M16 1.5 SAE	Product Series	Diesel Spin-on 600
