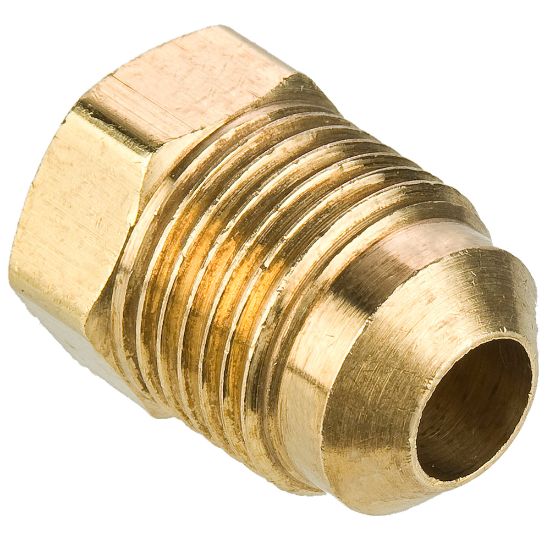

Parker 639F-4 - Brass 45° Flare Fittings

Name: Parker 639F-4 - Brass 45° Flare Fittings
SKU: 639F-4
Price: 3.02 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

9 In Stock

Sumter, SC	7
Summerville, SC	2

Partner Available:

140 In Stock

Brand Parker

Part No. 639F-4

$3.02

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J512, SAE J513
Minimum Operating Temperature	-53 °C	O-Ring Material	Fluorocarbon
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Body Material	Brass
Nut Material	Brass	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Pressure	96.5 bar	Brand	Parker
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Dimensional Weight	0.11037769784172662 lb
Connection 1 Tube Outside Diameter	1/4 inch	Product Style	Flare
Connection 1 Type	Flare	Connection 2 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Shape	Seal Plug	Connection 2 Type	NA
Connection 3 Tube Outside Diameter	NA	Connection 3 Thread Size	NA
Connection 1 Thread Size	7/16-20 inch
