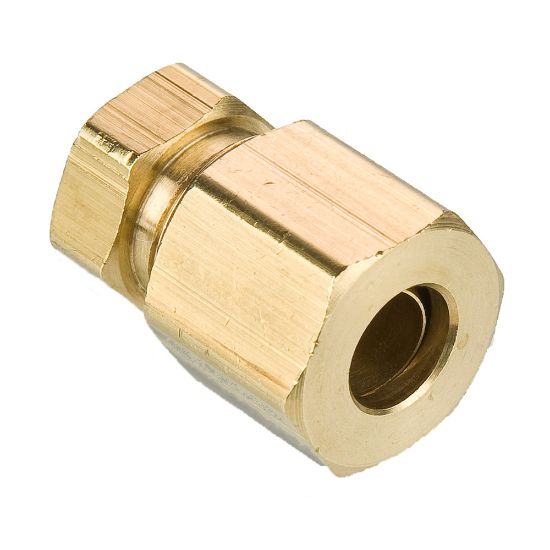

Parker 639C-4 - Inch Brass Compression Fittings

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 639C-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	na	Maximum Operating Pressure	96.5 bar
Weight	na	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Division	Fluid System Connectors Division	Nut Material	Brass
Maximum Operating Temperature	121 °C	Media	Water, air, inert and non-combustible gasses
Sleeve Material	Brass, Acetal	Quantity per Box	na
Minimum Operating Temperature	-65 °F	Tube Material	Copper, Aluminum, Thermoplastic
Body Material	Brass	Connection 1 Type	Compression
Product Style	Plug	Body Material	Brass, Forged
Connection 1 Size	1/4"
