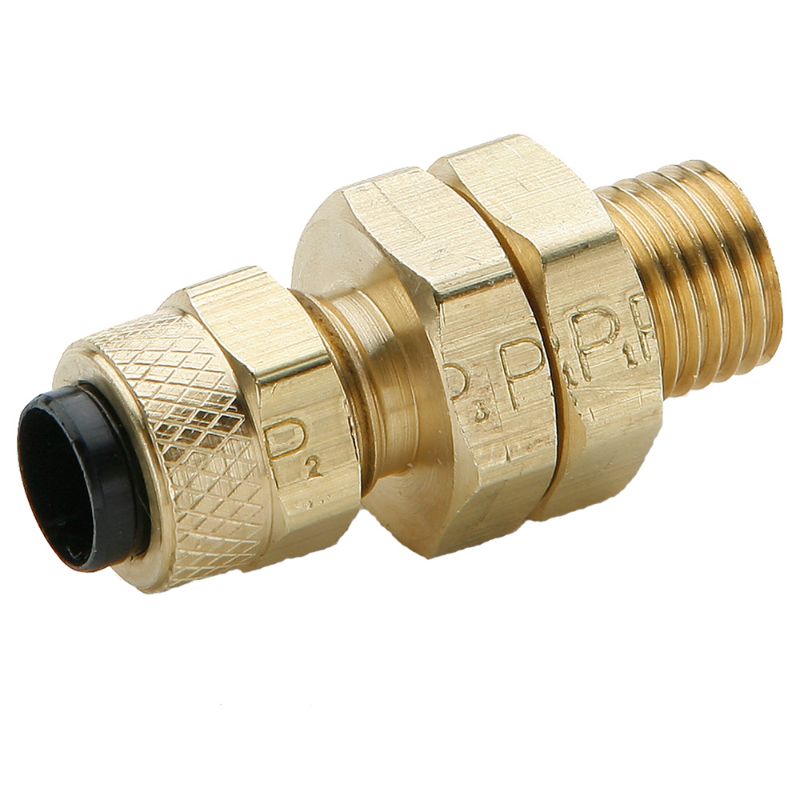

Parker 62PTBH-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: Parker 62PTBH-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 62PTBH-4
Price: 12.77 USD
Availability: InStock

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

AFP Availability:

15 In Stock

West Knoxville, TN

Partner Available:

1573 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 62PTBH-4

$12.77/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	65 °C	Application	Dental
Minimum Operating Temperature	0 °F	Body Material	Brass
Nut Material	Brass	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Brass, Acetal Copolymer	Dimensional Weight	0.11037769784172662 lb
Maximum Operating Pressure	150 psi	Shape	Bulkhead
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Straight thread
Connection 2 Style	Straight Thread	Connection 2 Thread Size (inch)	3/8-24
