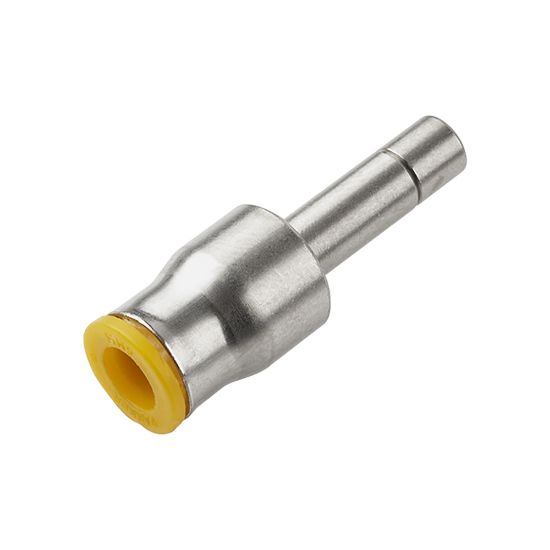

Parker 62PLPSP-6M-4M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62PLPSP-6M-4M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Industry	Material Handling	Division	Fluid System Connectors Division
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Minimum Operating Temperature	0 °F	Hex Size	n/a
For Fluid Type	Oil	Maximum Operating Pressure	300 psi
Technology	Pneumatics	Specifications Met	UL 94 V-0
Materials of Construction	PVDF (Button)	Body Material	Brass, Nickel-plated
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Tube Material	Rigid Nylon
Application	Air Lines	Connection 1 Size	6 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	4 mm	Connection 2 Type	Push-to-Connect
Product Style	Tube Expander

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
