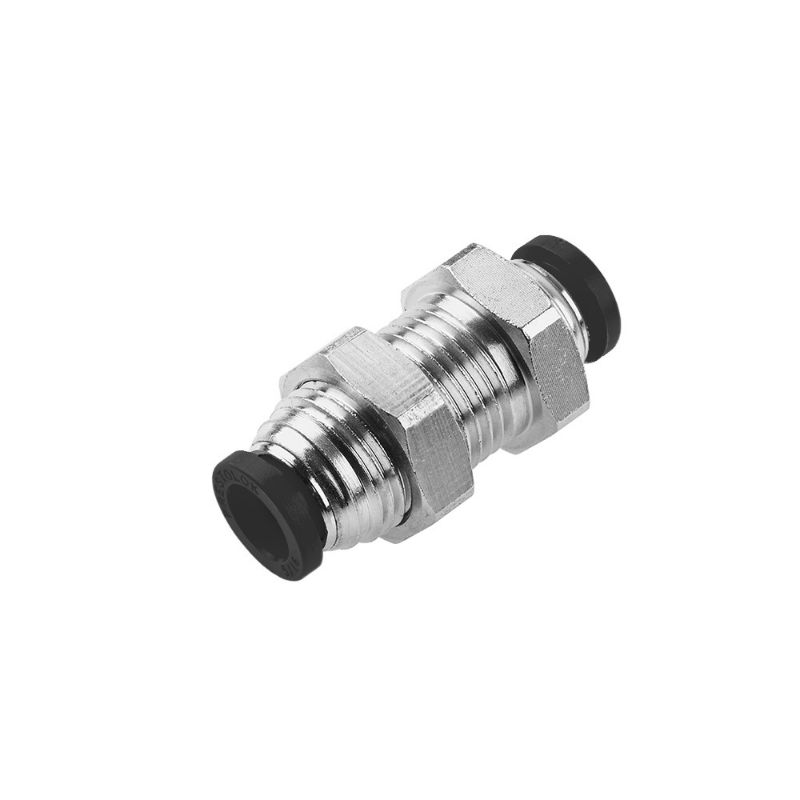

Parker 62PLPBH-5 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	123 In Stock

Brand Parker

Part No. 62PLPBH-5

$18.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Industry	Material Handling
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Minimum Operating Temperature	0 °F	For Fluid Type	Air
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	20.6 bar
Tube Material	Polypropylene	Region of Origin	United States
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	93.3 °C
Application	Packaging	Hex Size	3/4 inch
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	5/16"	Connection 1 Size	5/16"
Connection 2 Type	Push-to-Connect	Shape	Union - Bulkhead
