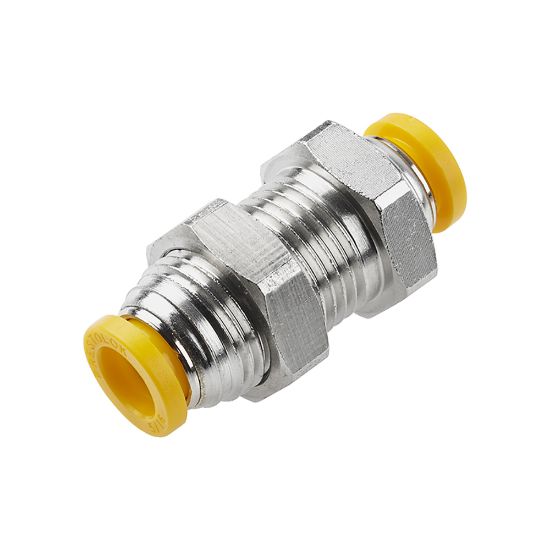

Parker 62PLPBH-10M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62PLPBH-10M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Minimum Operating Temperature	0 °F
For Fluid Type	Oil	Maximum Operating Pressure	300 psi
Technology	Pneumatics	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Industry	Automotive	Body Material	Brass, Nickel-plated
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Application	Packaging	Tube Material	Polyethylene
Hex Size	7/8 inch	Connection 1 Size	10 mm
Connection 2 Size	10 mm	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Shape	Union - Bulkhead
