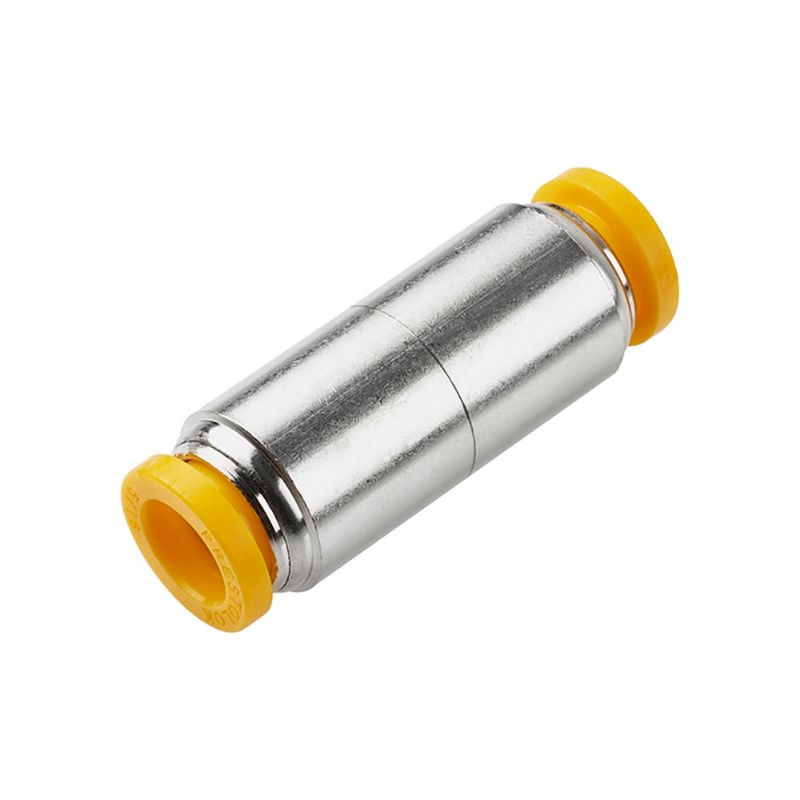

Parker 62PLP-8M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62PLP-8M

$10.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-17.7 °C
Application	Oil Lines	Division	Fluid System Connectors Division
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Industry	Industrial Manufacturing Equipment	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Brand	Parker
Specifications Met	UL 94 V-0	Tube Material	Polypropylene
For Fluid Type	Air	Vacuum Pressure Rating	28 Inch-Hg
Materials of Construction	PVDF (Button)	Region of Origin	United States
Hex Size	n/a	Division	Fluid System Connectors Division
Maximum Operating Temperature	93.3 °C	Technology	Pneumatics
Connection 1 Size	8 mm	Connection 2 Size	8 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Shape	Union
