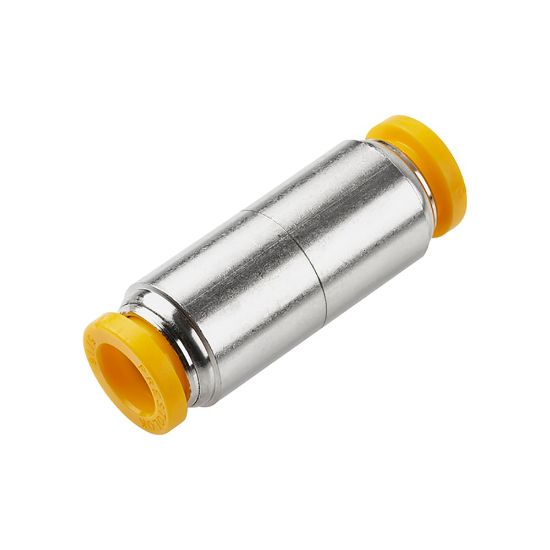

Parker 62PLP-6M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62PLP-6M

$7.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Region of Origin	United States
Division	Fluid System Connectors Division	Maximum Operating Temperature	93.3 °C
Technology	Pneumatics	Minimum Operating Temperature	0 °F
Application	Air Lines	Division	Fluid System Connectors Division
Hex Size	n/a	Body Material	Brass, Nickel-plated
Maximum Operating Pressure	300 psi	Industry	Semiconductor
Seal Material	Nitrile	Specifications Met	UL 94 V-0
Tube Material	Polyethylene	For Fluid Type	Inert Gases
Vacuum Pressure Rating	28 Inch-Hg	Gripping Ring Material	Stainless Steel
Brand	Parker	Materials of Construction	PVDF (Button)
Connection 1 Size	6 mm	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Size	6 mm
Connection 2 Type	Push-to-Connect	Shape	Union

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety
