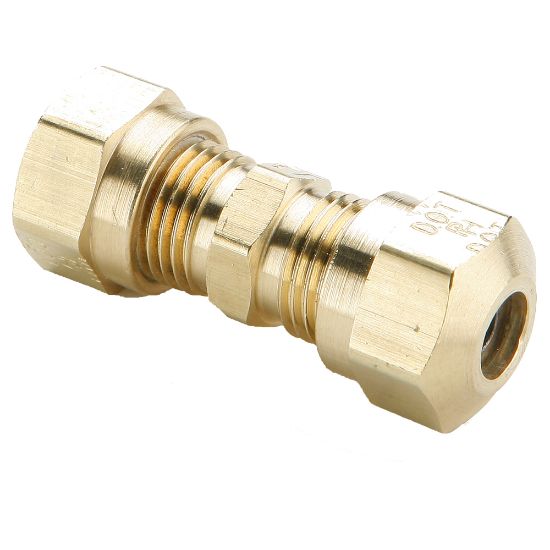

Parker 62NTA-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker 62NTA-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 62NTA-4
Price: 12.35 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

AFP Availability:

81 In Stock

North Chesterfield, VA	30
Summerville, SC	15
Sumter, SC	14
Norfolk, VA	5
Fayetteville, NC	5
East Knoxville, TN	4
West Knoxville, TN	3
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)
Johnson City, TN	1 (Pickup only)

Partner Available:

391 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 62NTA-4

$12.35/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Thread Sealant Material	Vibra-Seal 516
Dimensional Weight	0.27594424460431655 lb	Body Material	Brass
Nut Material	Brass	Sleeve Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Application	Air Brake, Accessories
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	10 bar
Tube Material	Stainless Steel	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection 1 Style	Compression	Style	Tube to Tube
Connection 2 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Tube O.D. (inch)	1/4	Shape	Union
