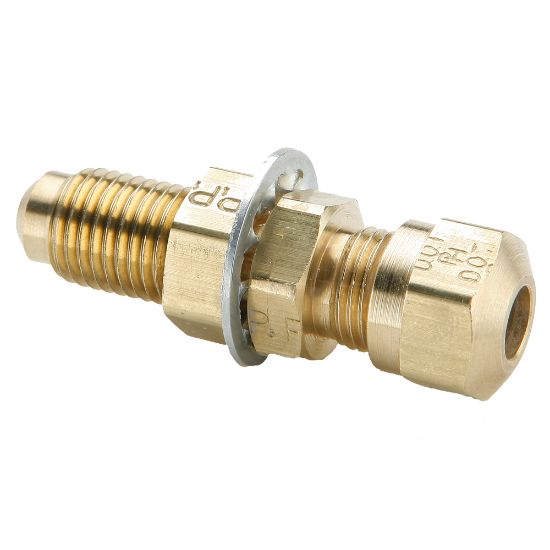

Parker 62NFBH-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62NFBH-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	93 °C	Dimensional Weight	0.27594424460431655 lb
Nut Material	Brass	Sleeve Material	Brass
Application	Air Brake, Accessories	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Shape	Bulkhead	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	5/8
Connection 1 Style	Compression	Style	Tube to Flare
Connection 2 Style	45 Flare
