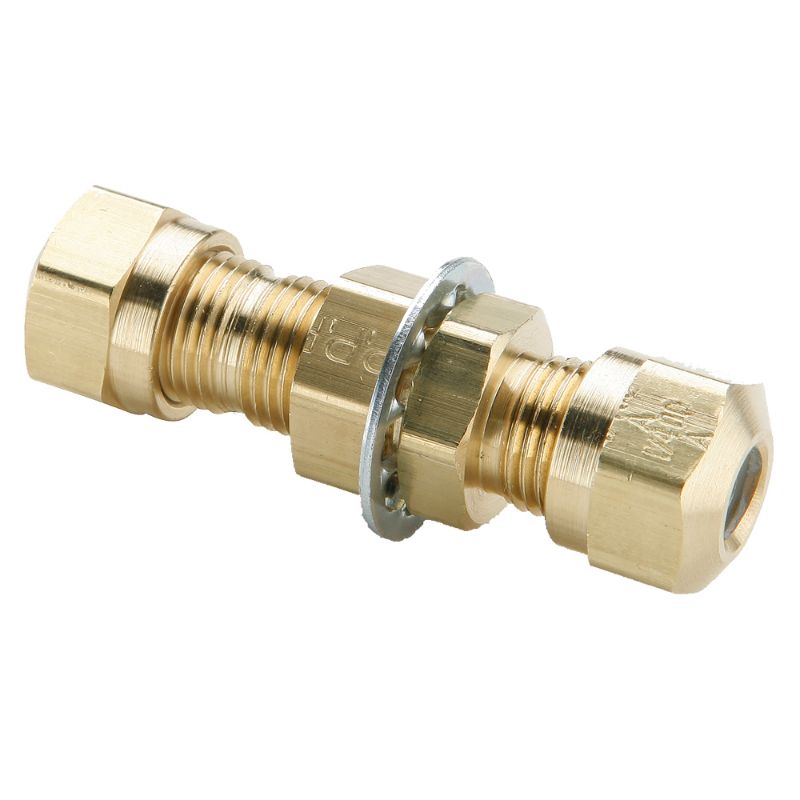

Parker 62NBH-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62NBH-10

$48.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	200 °F
Nut Material	Brass	Sleeve Material	Brass
Application	Air Brake, Accessories	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Shape	Bulkhead	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	5/8
Connection 1 Style	Compression	Style	Tube to Tube
Connection 2 Style	Compression
