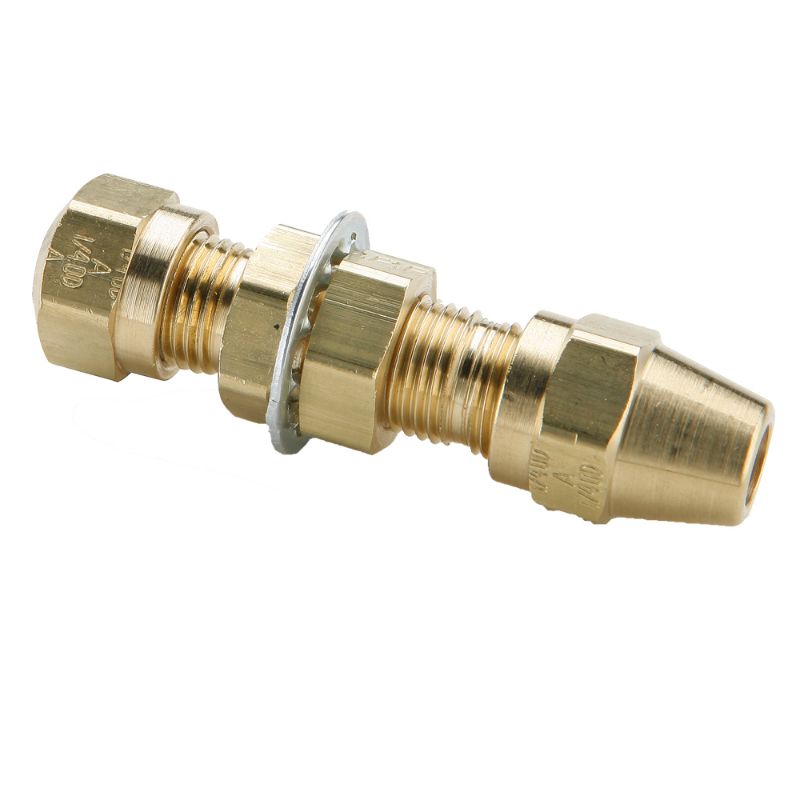

Parker 62ANBH-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62ANBH-4

$35.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Sleeve Material	Brass
Application	Air Brake, Accessories	Minimum Operating Temperature	-40 °C
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	10 bar
Maximum Operating Temperature	93 °C	Division	Fluid System Connectors Division
Body Material	Brass	Nut Material	Brass
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	NTA Tube to AB Tube	Connection 3 Style	na
Shape	Bulkhead	Connection 2 Tube O.D. (inch)	1/4
Connection 2 Thread Size (inch)	na	Connection 3 Thread Size (inch)	na
Connection 2 Style	Compression
