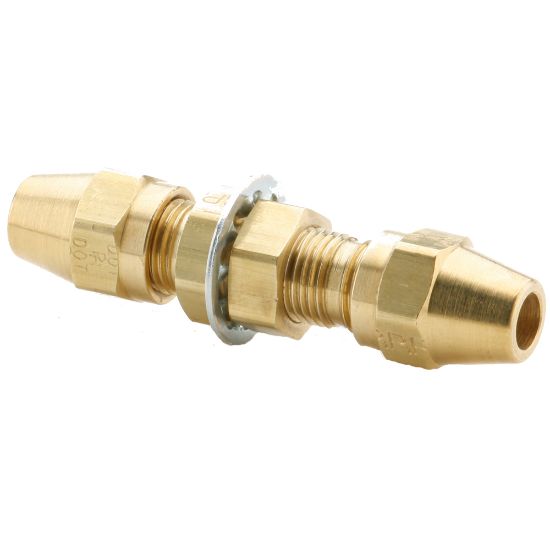

Parker 62ABH-4 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 62ABH-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	DOT FMVSS 571.106, SAE J246	Nut Material	Brass
Sleeve Material	Brass	Maximum Operating Pressure	27 bar
Minimum Operating Temperature	-65 °F	Application	Air Brake
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Tube Material	Annealed Copper	Thread Sealant Material	Vibra-Seal 516
Body Material	Brass	Connection 2 Style	Compression
Connection 2 Thread Size (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Shape	Bulkhead
Style	Tube to Tube	Connection 2 Tube O.D. (inch)	1/4
