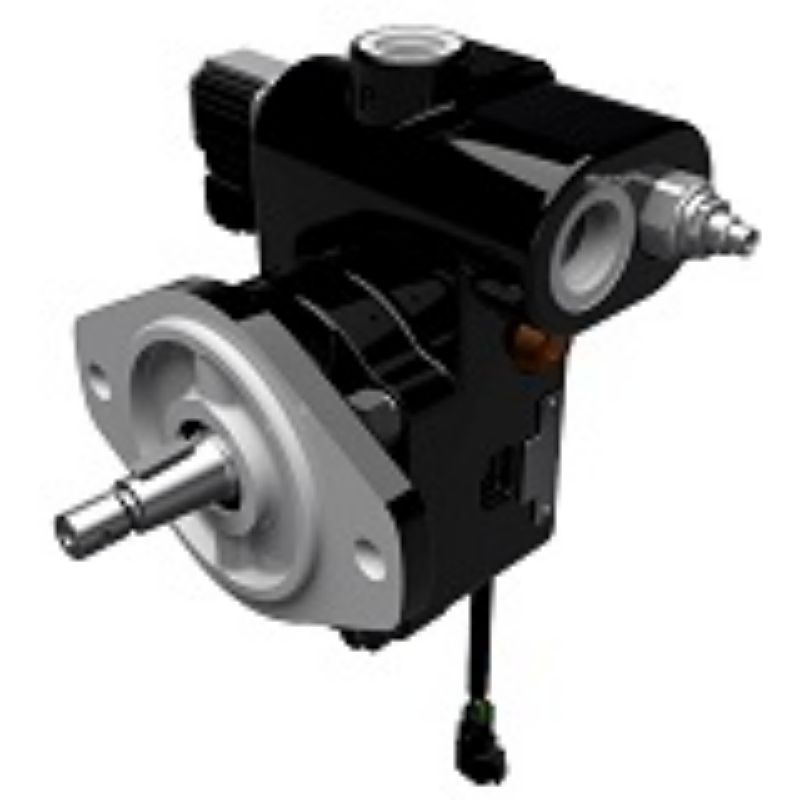

Parker 620R Series - Cast Iron Motors – PGM620R Series

Parker’s Cast Iron Motor PGM620R Series fixed displacement gear motor offers high performance and high power density due to its two-piece cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 620R Series

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Circuit Path	Open	Charge Pump Included	No
Drain Option	Yes	Maximum Fluid Temperature	180
Minimum Fluid Temperature	0	For Fluid Type	Standard Hydraulic Fluids
Minimum Kinematic Viscosity	50	Minimum Operating Pressure	275
Port Connection	SAE	Maximum Operating Speed	4000 RPM (if higher consult factory)
Configuration	Single	Division	Pump & Motor Division
Maximum Operating Pressure	3989	Maximum Displacement	37
Maximum Kinematic Viscosity	7500	Port Location	Side Only
Port Type	SAE	Body Material	Cast Iron
Direction of Rotation	Bi-Rotational	Radial Load Capacity	Consult Factory
Pump Type	Fixed Displacement	Product Style	Variable Control
Maximum Noise Level	n/a	Maximum Flow Rate	n/a
Weight	12.9 kg Max.	Shaft Type	SAE
Mounting Option	SAE
