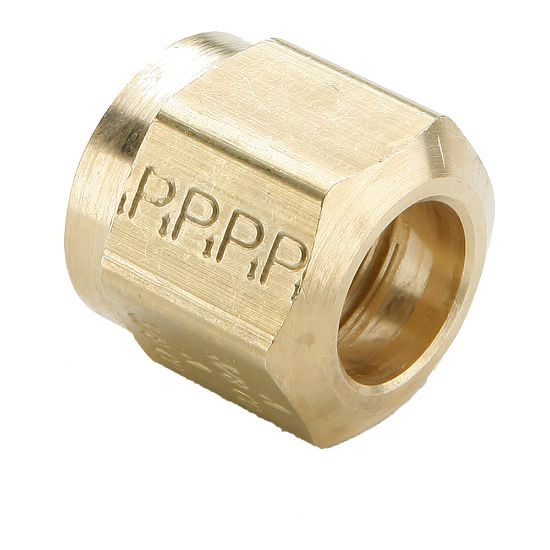

Parker 61NTA-3 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 61NTA-3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	200 °F
Thread Sealant Material	Vibra-Seal 516	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °C	Tube Material	Stainless Steel
Body Material	Brass	Division	Fluid System Connectors Division
Nut Material	Brass	Application	Air Brake, Accessories
Sleeve Material	Brass	Shape	Nut
Connection 3 Style	na	Connection 1 Tube O.D. (inch)	3/16
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 3 Thread Size (inch)	na	Style	Tube
Connection 2 Style	na	Connection 1 Style	Compression
