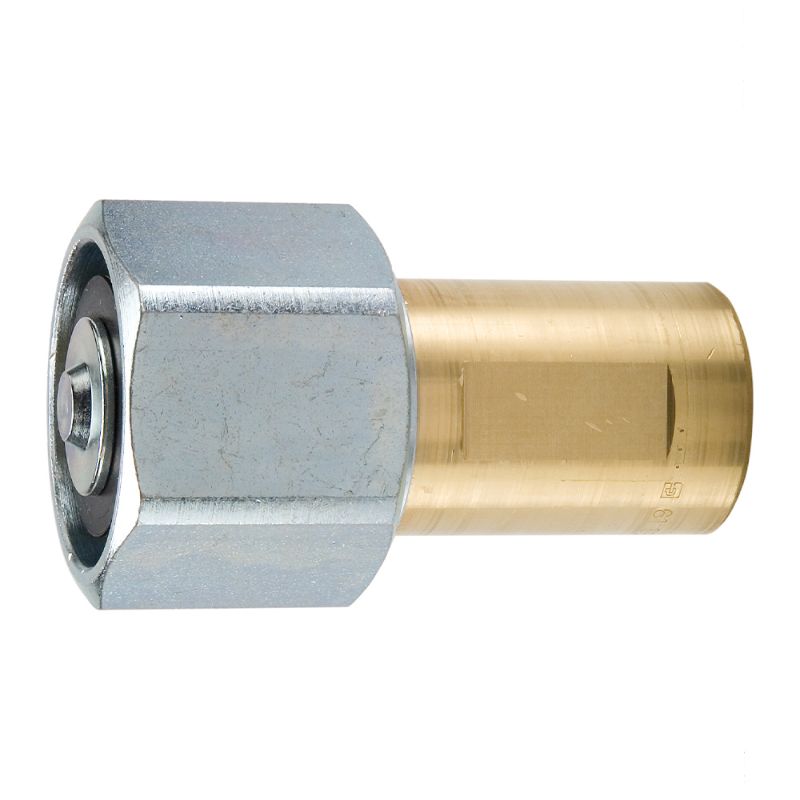

Parker 6135-16 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 6135-16

$193.06/each

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Connection Type	Female NPTF
Division	Quick Coupling Division	Dimensional Weight	0.6232014388489209 lb
Valve Type	Flat Face	Body Material	Brass
Hex Size	1.43 inch	Flow Rate	50 Gal/min
Product Type	Thread to Connect	Hex Size 2	2.13 inch
Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve	Minimum Operating Temperature	-40 °F
Application	High Flow	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Coupling Half	Female Coupler
Connection Thread Size (inch)	1 - 11 1/2	Body Size	1 Inch
Sleeve Type	Hex nut
