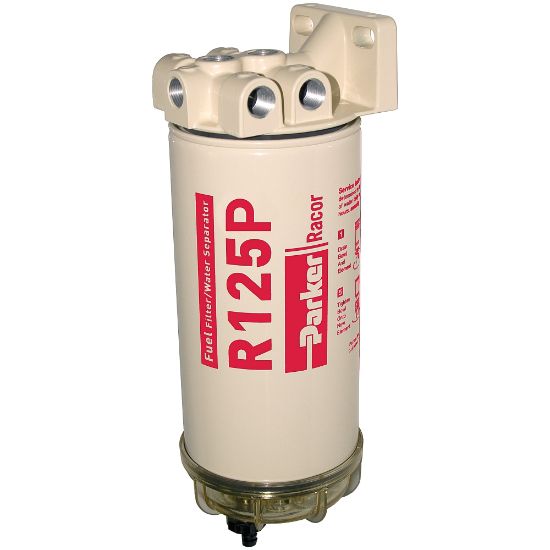

Parker 6125R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6125R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
For Fluid Type	Diesel and Gasoline	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	30 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Operating Temperature	-40 to 250	Maximum Fluid Temperature	190.0
Maximum Operating Pressure	15	Compatible Element	R125S = "2" Micron<br/>R125T = 10 Micron<br/>R125P = 30 Micron
Width	4.5	Weight	1.8
Depth	114.0	Clean Pressure Drop	2.65
Height	353.0	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Integral Primer Pump Included	No Pump	Port Size	3/8"-18 NPTF (SAE J476)
Flow Rate	120 gph (454 lph)	Product Series	Diesel Spin-on 600
