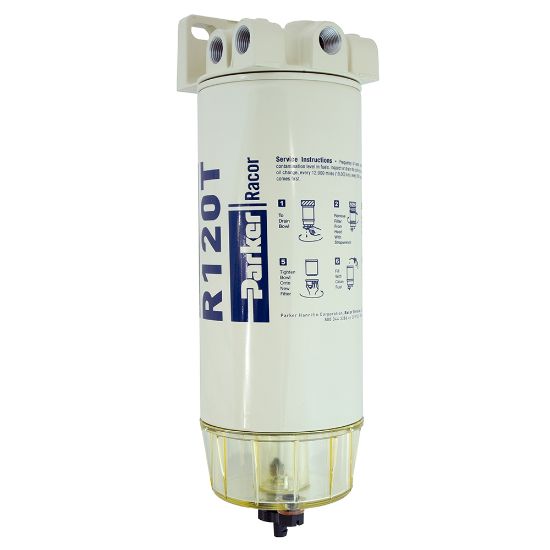

Picture of Parker 6120R10 - Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 6120R10 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 6120R10
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Product TypeDiesel Spin-on FF/WSHead MaterialAluminium Alloy
For Fluid TypeDiesel and GasolineNumber of Ports2 Inlet / 2 Outlet
Filter Element Type10 Micron Aquabloc Spin-onAccessories IncludedSee Product Support Tab
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
Maximum Operating Pressure15Compatible ElementR120S = "2" Micron<br/>R120T = 10 Micron<br/>R120P = 30 Micron
Weight1.8Depth114.0
Width114.0Height358.0
Clean Pressure Drop2.65LocationNorth America and EMEA regions
Micron Rating98% @ 10 MicronMountingBracket Included
Part TypeFilter AssemblyBowl MaterialClear Engineering Plastic
Heater Power RatingNo HeaterIntegral Primer Pump IncludedNo Pump
Bowl TypeDeep Bowl, Clear Engineering PlasticPort Size3/8"-18 NPTF (SAE J476)
Flow Rate120 gph (454 lph)Product SeriesDiesel Spin-on 600
