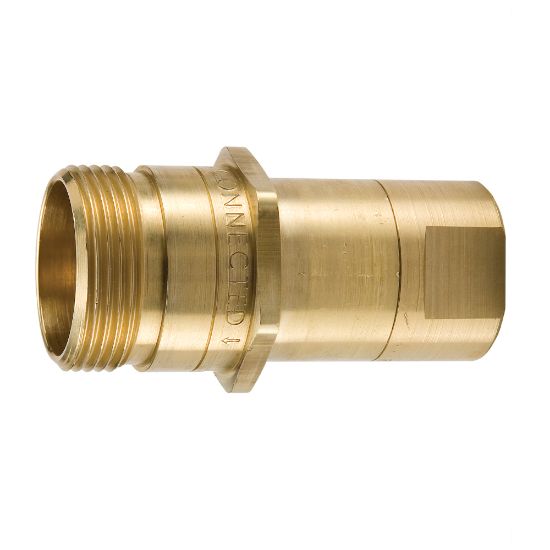

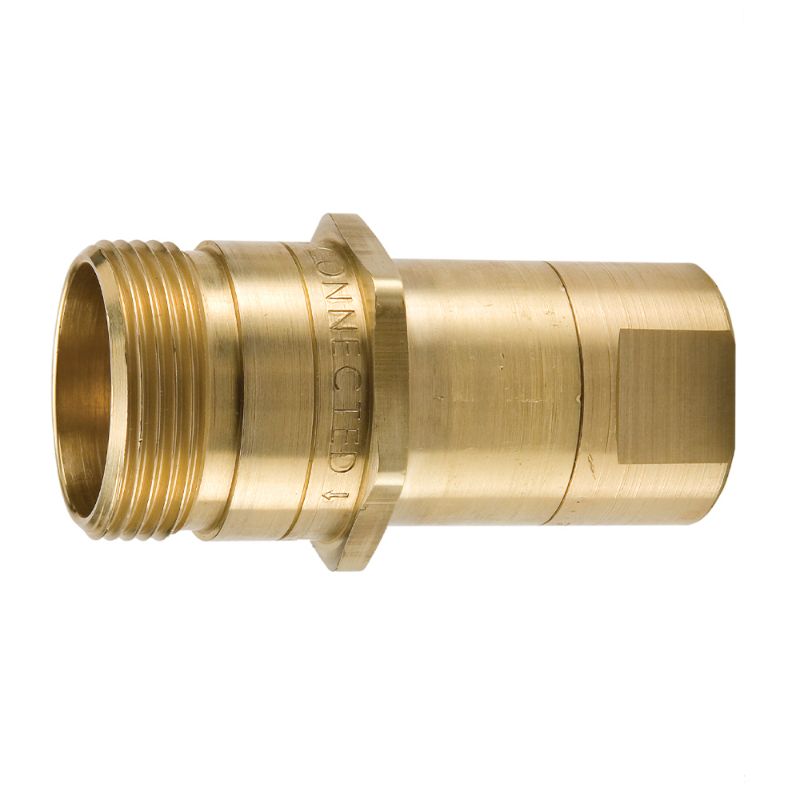

Parker 6105-08-BSPP - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6105-08-BSPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size 2	1.62 inch	Connection Type	BSPP
Maximum Operating Pressure	3000 psi	Flow Rate	12 Gal/min
Hex Size	1.18 inch	Division	Quick Coupling Division
Valve Type	Flat Face	Product Type	Thread to Connect
Minimum Operating Temperature	-40 °F	Application	Hydraulic, connect under pressure, high flow
Body Material	Brass	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Male Nipple	Body Size	3/4 Inch
Sleeve Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
