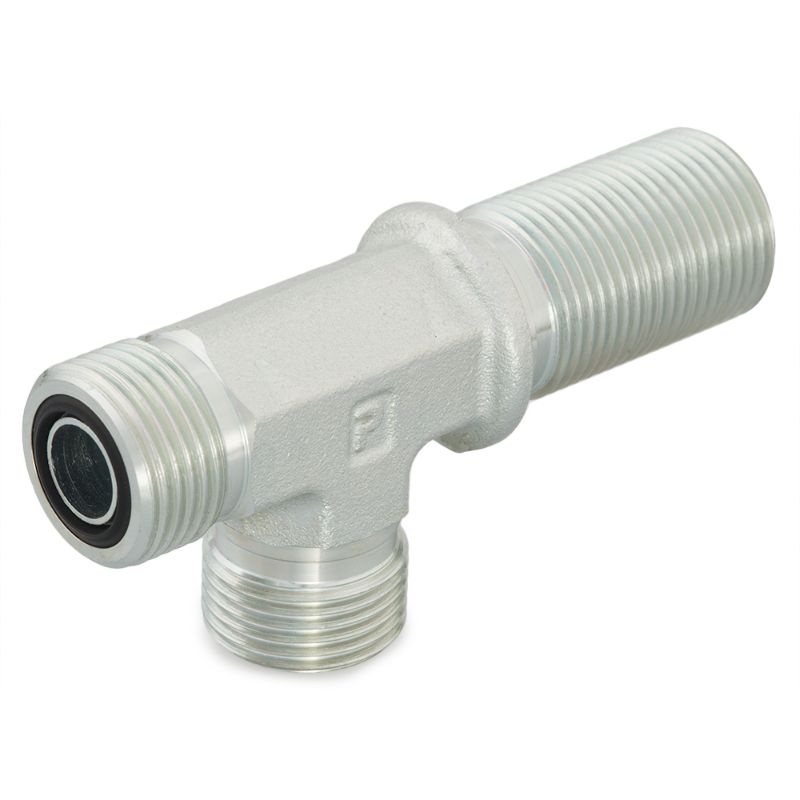

Parker 6 WJJLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 6 WJJLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 6 WJJLO-S
Price: 48.40 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 6 WJJLO-S

$48.40/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male O-Ring Face Seal Bulkhead	Body Material	Steel
Connection 2 Tube Outside Diameter	8, 10 mm	Shape	Tee
Connection 2 Thread Size	na	Maximum Dynamic Pressure	9200 psi
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Type	Male O-Ring Face Seal	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	8, 10 mm	Dimensional Weight	0.06492924081787202 lb
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Connection 4 Type	na
Connection 1 Tube Outside Diameter	8, 10 mm
