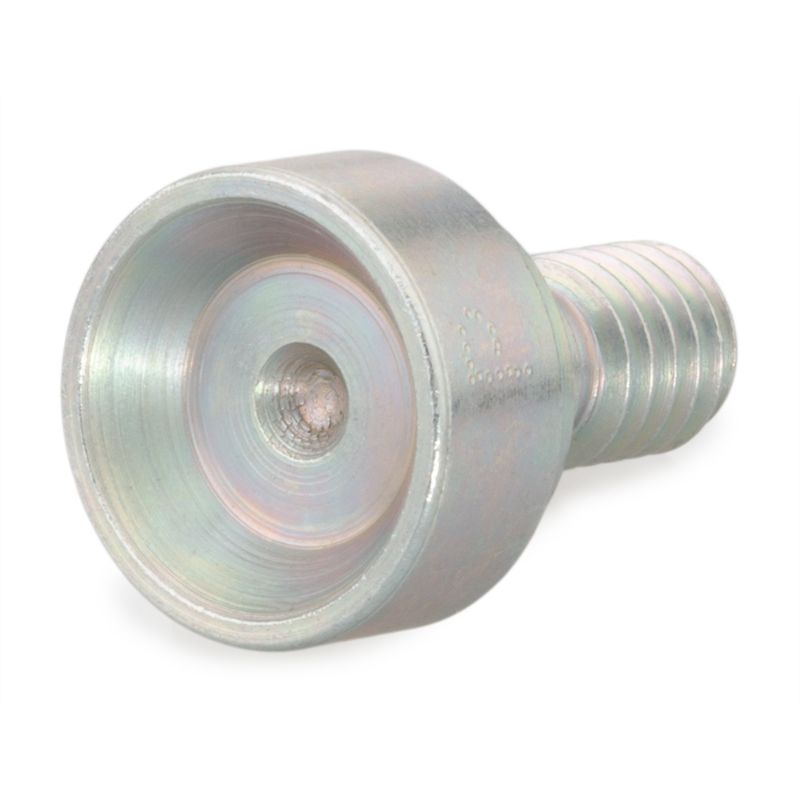

Parker 6 T22X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 6 T22X-S

$9.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Shape	Cap	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	1/4-20 inch	Specifications Met	SAE J514
Connection 4 Size	na	Connection 3 Size	na
Maximum Dynamic Pressure	6000 psi	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 2 Size	Male Bolt Threads
Connection Type	37° Flare	Division	Tube Fittings Division
O-Ring Material	na	Connection 1 Size	Female 37° Flare
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	10 mm

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
