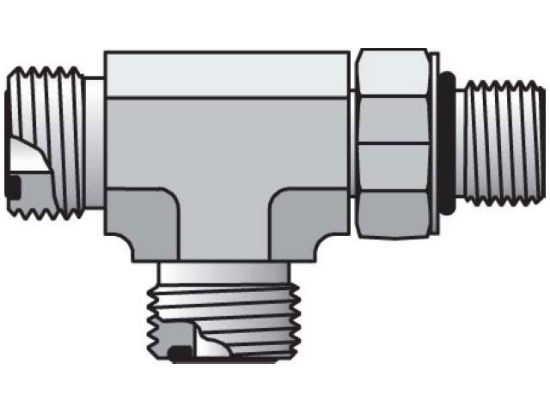

Parker 6 R5OLO-S V0894 - Seal-Lok ORFS Tee R5OLO

Seal-Lok - Straight Thread Run Tee ORFS / SAE-ORB / ORFS

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6 R5OLO-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty	100	O-Ring/Seal Material	Fluorocarbon
End 3	3/8 Inch	End 1	3/8 Inch
Pkg Qty/UOM	100 EA	UOM	EA
Material	Steel	End 2	9/16-18 UN/UNF-2A
Parker Group	Fluid Connector	Configuration Sub-Type	Straight Thread Run Tee ORFS / SAE-ORB / ORFS
Series	ORFS	End 2	9/16-18 UN/UNF-2A
End 1	3/8 Inch	End 3	3/8 Inch
End 1 Type	Inch	Configuration Type	Tee
End 2 Type	UN/UNF-2A	End 3 Type	Inch
Inch/Metric	Inch	Tube Fitting/Adapter Type	ORFS, Seal-Lok O-Ring Face Seal
Trade Name	Seal-Lok	Material	Steel
O-Ring/Seal Material	Fluorocarbon	Parker Division	Tube Fitting

Product resources

Seal-Lok O-Ring Face Seal Fittings (PDF)
