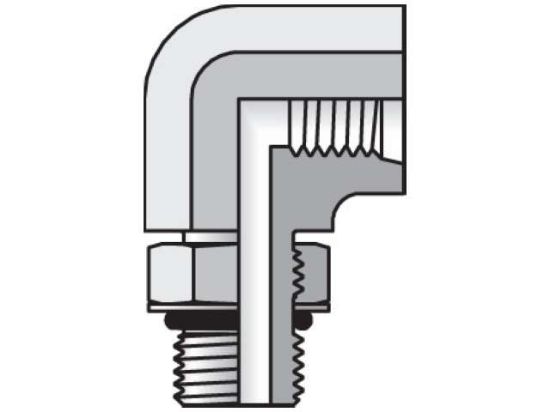

Parker 6 AOEG5-S V0894 - Pipe & Port 90° Elbow AOEG5

Straight Thread Elbow SAE-ORB / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6 AOEG5-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
End 2	9/16-18 UN/UNF-2B	Pkg Qty/UOM	200 EA
O-Ring/Seal Material	Fluorocarbon	End 1	9/16-18 UN/UNF-2A
UOM	EA	Material	Steel
Pkg Qty	200	End 1	9/16-18 UN/UNF-2A
End 1 Type	UN/UNF-2A	Parker Group	Fluid Connector
End 2	9/16-18 UN/UNF-2B	End 2 Type	UN/UNF-2B
Tube Fitting/Adapter Type	Pipe & Port	Configuration Type	90° Elbow
Series	Pipe & Port	Inch/Metric	Inch
Configuration Sub-Type	Straight Thread Elbow SAE-ORB / SAE-ORB	O-Ring/Seal Material	Fluorocarbon
Parker Division	Tube Fitting	Material	Steel

Product resources

Pipe Fittings and Adapters (PDF)
