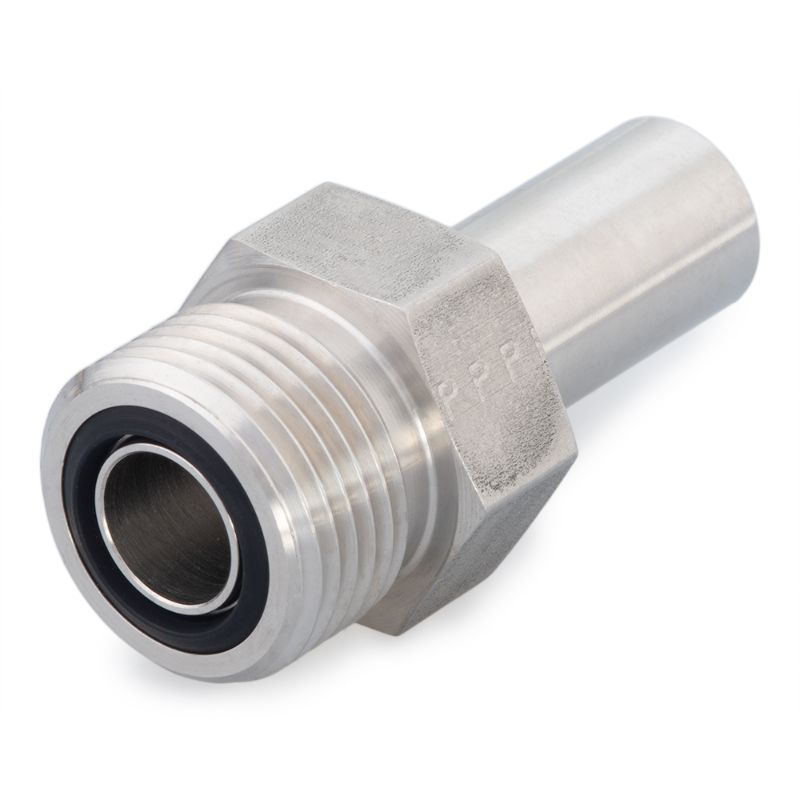

Parker 6-6X035 LOHT3-SS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6-6X035 LOHT3-SS

$99.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Type	na
O-Ring Material	90 Durometer Nitrile	Division	Tube Fittings Division
Connection Type	O-ring Face Seal	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	8, 10 mm	Body Material	Stainless Steel
Connection 2 Type	Male Butt Weld	Shape	Straight
Connection 2 Thread Size	na	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Tube Outside Diameter	3/8 inch	Specifications Met	SAE J1453
Maximum Dynamic Pressure	3800 psi	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 3 Type	na
Dimensional Weight	0.07913669064748201 lb
