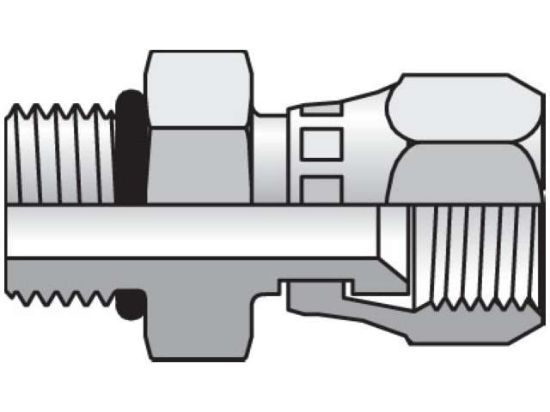

Parker 6-4 F65OX-S V0894 - Triple-Lok 37° Straight Swivel F65OX

Triple-Lok - Swivel Straight Thread Connector 37° Swivel / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6-4 F65OX-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
O-Ring/Seal Material	Fluorocarbon	Pkg Qty	1
Pkg Qty/UOM	1 EA	End 1	3/8 Inch
UOM	EA	End 2	7/16-20 UN/UNF-2A
Material	Steel	Parker Group	Fluid Connector
Configuration Sub-Type	Swivel Straight Thread Connector 37° Swivel / SAE-ORB	Tube Fitting/Adapter Type	37°, Triple-Lok
End 1	3/8 Inch	End 1 Type	Inch
Trade Name	Triple-Lok	Series	37°
End 2 Type	UN/UNF-2A	Inch/Metric	Inch
Material	Steel	O-Ring/Seal Material	Fluorocarbon
Parker Division	Tube Fitting	Configuration Type	Straight Swivel
End 2	7/16-20 UN/UNF-2A

Product resources

Triple-Lok Flare Tube Fittings (PDF)
