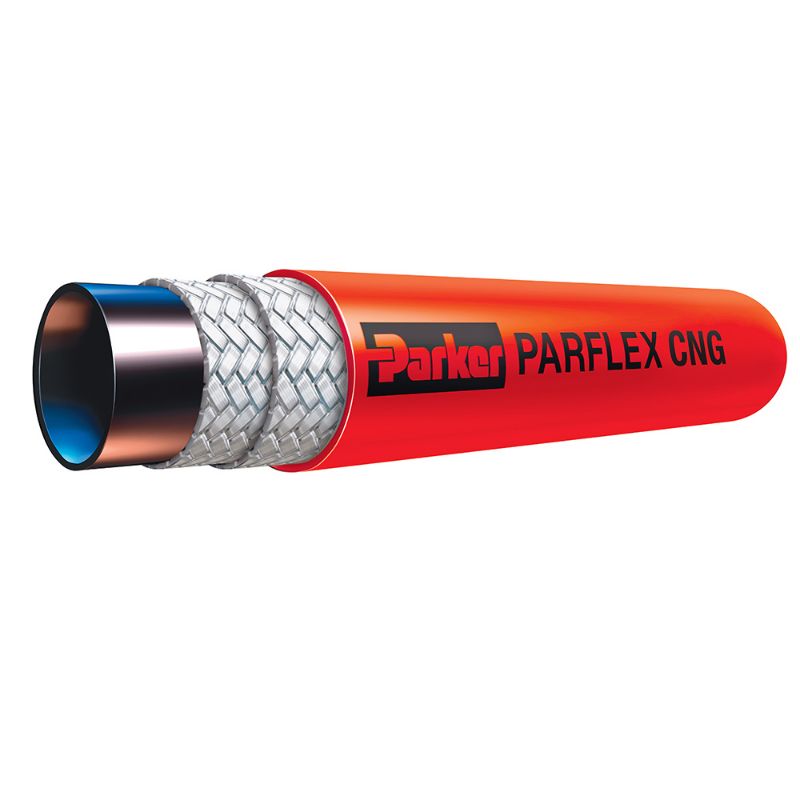

Parker 5CNG-6 - Compressed Natural Gas Hose - Electrically Conductive - 5CNG

Parflex's global presence in the CNG market for natural gas vehicles and fueling stations allow OEM revenue growth by selling into multiple geographies given the CSA (NA) and ECR (EMEA) approvals on CNG Hose.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 5CNG-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Maximum Operating Temperature	85 °C	Weight	0.13 kg/m
Minimum Bend Radius	76 mm	Design Factor	4:1
Inside Diameter	3/8 inch	Outside Diameter	16.5 mm
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Pressure	34.5 MPa	Media	Natural Gas
Compatible Fitting	CG Series	Hose Reinforcement Material	Aramid Fiber
Application	Natural Gas Transfer	Specifications Met	CSA
Hose I.D. (inch)	3/8
