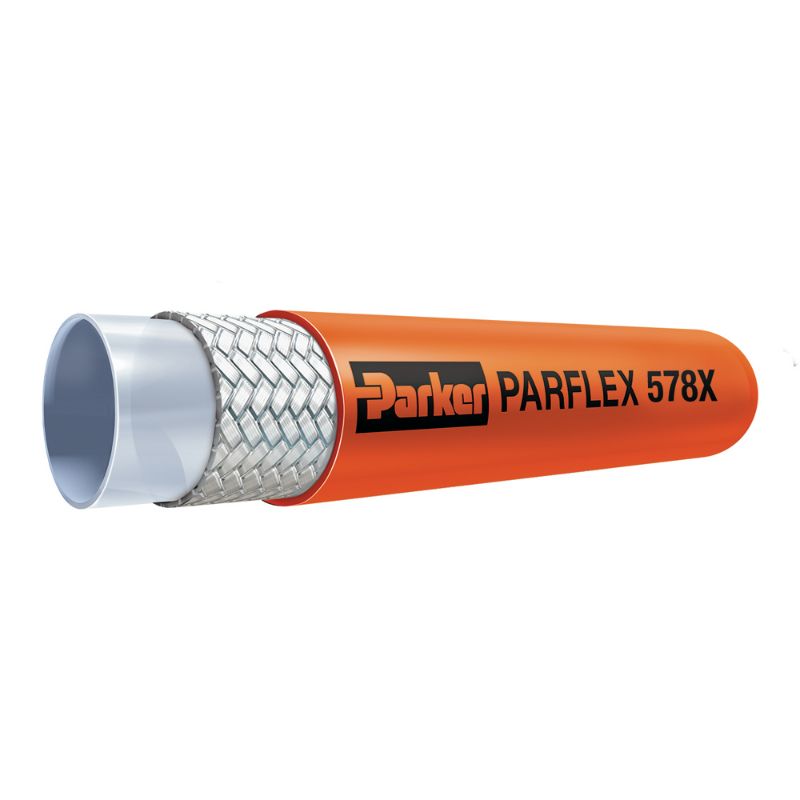

Picture of Parker 578X-12 - 5,000 PSI FAST RESPONSE CONSTANT PRESSURE HOSE – 578X

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 578X-12 - 5,000 PSI FAST RESPONSE CONSTANT PRESSURE HOSE – 578X

Parflex 578X Fast Response Hoses have a non-conductive nylon jacket designed to resist the flow of electrical current and a 5,000 psi constant working pressure.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 578X-12
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
MediaLubricants (Oils)DivisionParflex Division
Maximum Operating Pressure5000Compatible FittingCG Series
Inside Diameter3/4Weight0.26
Design Factor4:1Minimum Bend Radius8
Hose Reinforcement MaterialAramid FiberHose Inner Tube MaterialPolyamide (PA)
ApplicationOil & GasMaximum Operating Temperature212
Size-12Minimum Operating Temperature-40
Outside Diameter1.170Cover MaterialElastomeric Nylon
Specifications MetSAE J517 (non-conductivity)Hose I.D. (inch)3/4
