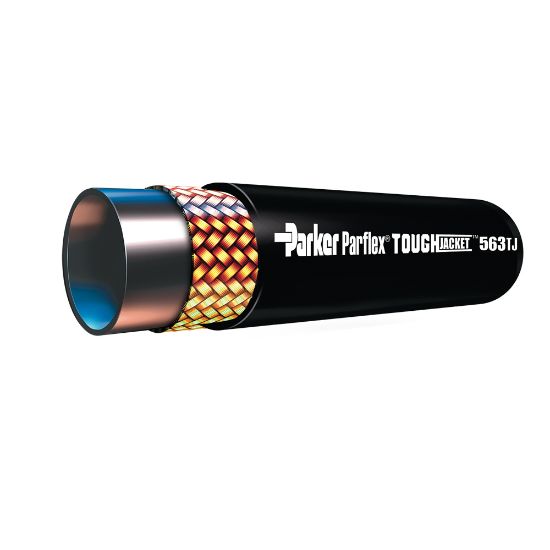

Parker 563TJ-8 - 100R17 Hose - 563TJ

Name: Parker 563TJ-8 - 100R17 Hose - 563TJ
SKU: 563TJ-8
Price: 6.66 USD
Availability: InStock

PARFLEX 563TJ TOUGHJACKET™ 3,000 PSI HOSE features the best low length change hose under pressure (+/- 1%) with maximum abrasion resistance. Formed hose and/or bonded hose.

Availability:

697 In Stock

Richmond, VA	310
Jacksonville, FL	181
Richmond, VA	57
Fayetteville, NC	56
Norfolk, VA	33
Ashland, VA	9

Partner Available:

4342 In Stock

Brand Parker

Part No. 563TJ-8

$6.66

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Bend Radius	69.9 mm
Maximum Operating Temperature	121 °C	Media	Water
Specifications Met	SAE J517 and 100R1, Type AT	Maximum Operating Pressure	21 MPa
Weight	0.24 lb/ft	Cover Material	Polyurethane
Minimum Operating Temperature	-40 °F	Application	Material Handling
Hose Reinforcement Material	1 Braid of High Tensile Steel Wire	Division	Parflex Division
Hose Inner Tube Material	Copolyester	Design Factor	4:1
Hose Cover Type	ToughJACKET™	Outside Diameter	0.770 inch
Size	-8	Inside Diameter	12.5 mm
Compatible Fitting	56 Series	Hose I.D. (inch)	1/2
