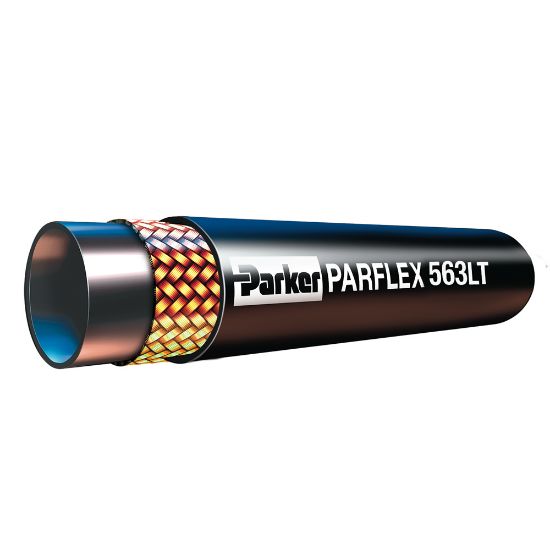

Parker 563LT-4 - Low Temperature Hydraulic Hose - 563LT 3,000 psi

Parker 563LT low temperature thermoplastic hydraulic hose is one of Parkers premier fork lift products and features operating temperatures as low as -70°F. Available as a single or twinline hose assembly.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 563LT-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Size	-4	Compatible Fitting	56 Series
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Inside Diameter	1/4 inch
Application	Over-the-Sheave	Specifications Met	SAE 100R17
Maximum Operating Pressure	210 bar	Maximum Operating Temperature	121 °C
Outside Diameter	11.9 mm	Minimum Bend Radius	1-1/2 inch
Minimum Operating Temperature	-70 °F	Media	Petroleum Hydraulic Fluids
Weight	0.13 kg/m	Design Factor	4:1
Hose Inner Tube Material	Copolyester	Division	Parflex Division
Cover Material	Copolyester	Hose I.D. (inch)	1/4
