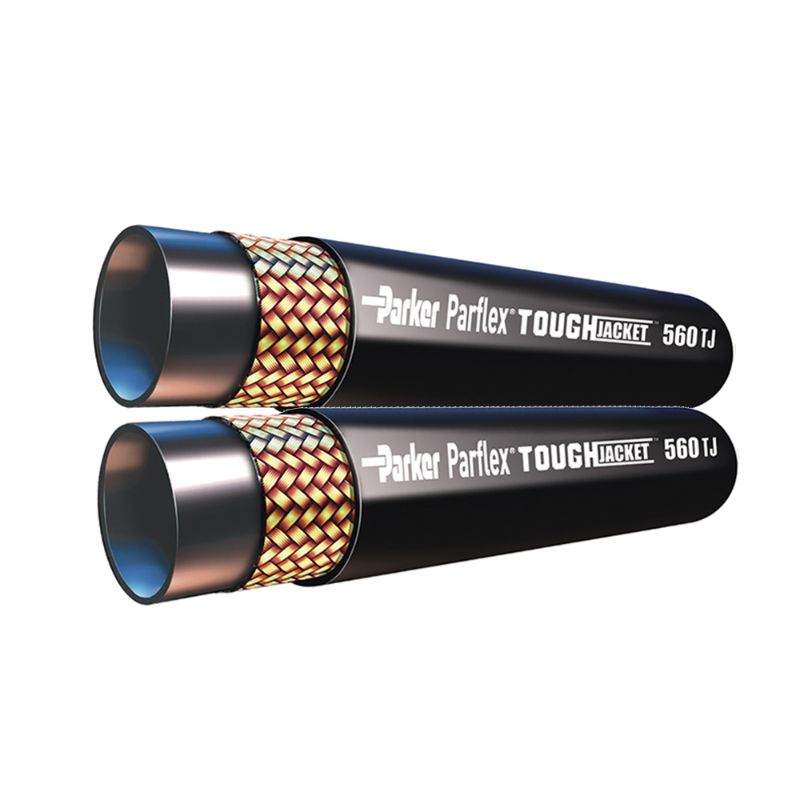

Parker 560TJ-6-6 - 100R1 Hose - 560TJ

Name: Parker 560TJ-6-6 - 100R1 Hose - 560TJ
SKU: 560TJ-6-6
Price: 13.01 USD
Availability: InStock

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.

Availability:

282 In Stock

Norfolk, VA

282

Partner Available:

645 In Stock

Brand Parker

Part No. 560TJ-6-6

$13.01

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Material	Polyurethane
Specifications Met	MSHA	Media	Petroleum Hydraulic Fluids
Minimum Bend Radius	51 mm	Hose Inner Tube Material	Copolyester
Division	Parflex Division	Product Style	Twin-Line
Inside Diameter	10 mm	Design Factor	n/a
Hose Cover Type	ToughJACKET™	Outside Diameter	1.220 inch
Maximum Operating Pressure	190 bar	Minimum Operating Temperature	-40 °C
Size	-6	Weight	0.21 kg/m
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Compatible Fitting	56 Series
Maximum Operating Temperature	121 °C	Application	Agriculture Equipment
Hose I.D. (inch)	3/8	Hose Style	Twin-line
