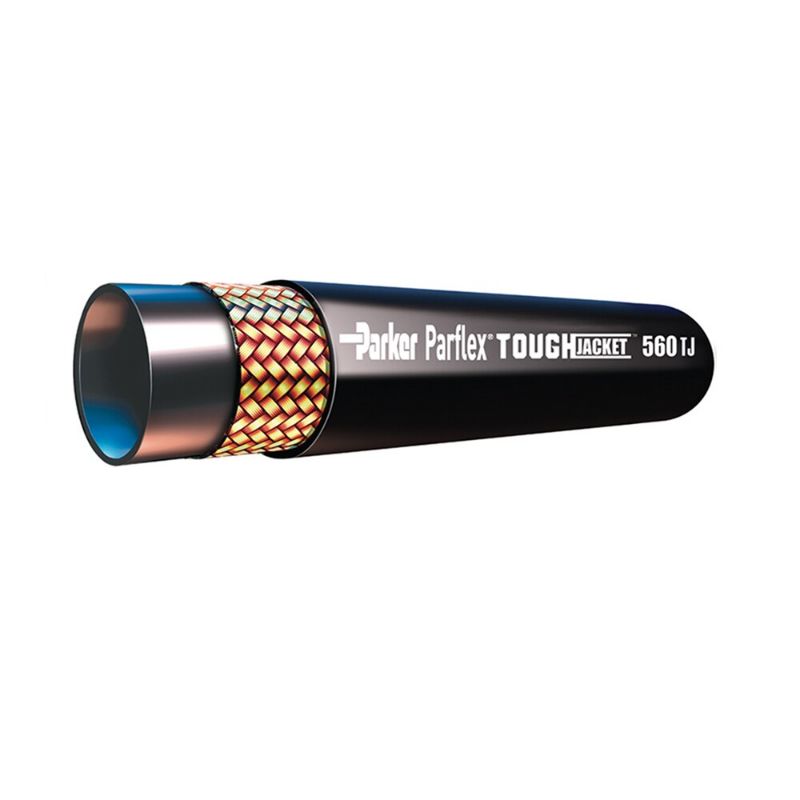

Parker 560TJ-6 - 100R1 Hose - 560TJ

Name: Parker 560TJ-6 - 100R1 Hose - 560TJ
SKU: 560TJ-6
Price: 5.07 USD
Availability: InStock

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.

AFP Availability:

220 In Stock

Mooresville, NC	213
Norfolk, VA	7

Partner Available:

4590 In Stock

Brand Parker

Part No. 560TJ-6

$5.07/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Cover Type	ToughJACKET™
Design Factor	n/a	Weight	0.21 kg/m
Compatible Fitting	56 Series	Specifications Met	SAE J517 and 100R1, Type AT
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Media	Water
Minimum Bend Radius	2 inch	Outside Diameter	0.610 inch
Inside Diameter	3/8 inch	Cover Material	Polyurethane
Hose Inner Tube Material	Copolyester	Maximum Operating Pressure	2750 psi
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Product Style	Standard	Size	-6
Maximum Operating Temperature	250 °F	Application	Industrial
Hose I.D. (inch)	3/8	Hose Style	Single
