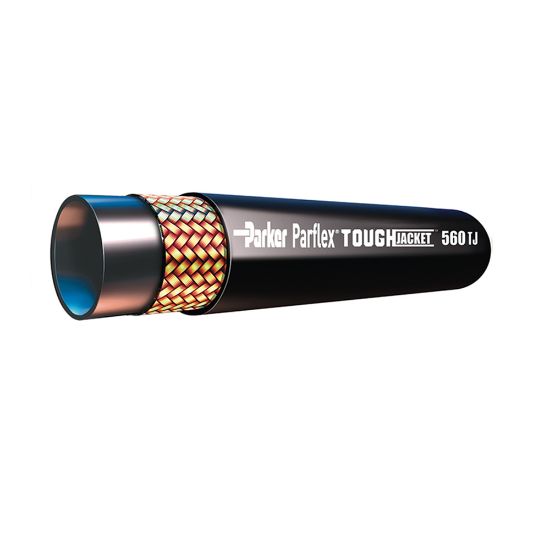

Picture of Parker 560TJ-10 - 100R1 Hose - 560TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 560TJ-10 - 100R1 Hose - 560TJ

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 560TJ-10
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Design Factorn/aWeight0.31
Minimum Bend Radius4Hose Cover TypeToughJACKET™
Hose Reinforcement MaterialBraid of High Tensile Steel WireCompatible Fitting56 Series
Outside Diameter0.930Minimum Operating Temperature-40
Maximum Operating Pressure2000Cover MaterialPolyurethane
MediaPetroleum Hydraulic FluidsSpecifications MetMSHA
ApplicationConstruction EquipmentProduct StyleStandard
Inside Diameter5/8DivisionParflex Division
Hose Inner Tube MaterialCopolyesterSize-10
Maximum Operating Temperature250Hose StyleSingle
Hose I.D. (inch)5/8
