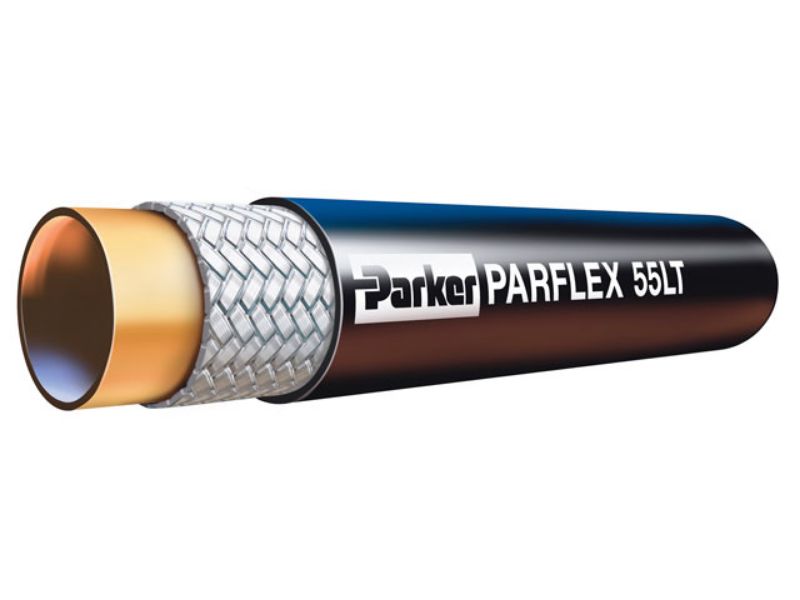

Parker 55LT-8-8 - 100R7 Hose - 55LT

Parker's Low Temperature Hydraulic Hose maintains superior flexibility in cold temperatures, meets SAE 100R7, and is designed for construction and agriculture equipment in cold climates.

Availability:	Quote Required
Partner Available:	328 In Stock

Brand Parker

Part No. 55LT-8-8

$22.09

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Air
Division	Parflex Division	Minimum Bend Radius	76 mm
Design Factor	4:1	Maximum Operating Pressure	13.8 MPa
Maximum Operating Temperature	100 °C	Size	-8
Inside Diameter	1/2 inch	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Weight	0.28 lb/ft	Application	Industrial Machinery
Specifications Met	SAE 100R7	Minimum Operating Temperature	-70 °F
Cover Material	Copolyester	Product Style	Twin-Line
Outside Diameter	41.2 mm	Hose I.D. (inch)	1/2
Hose Style	Twin-line	UOM	FT
Material	Thermoplastic	Inner Diameter	0.5 Inch
Mating Fitting Series	55	Pkg Qty	250
Pkg Qty/UOM	250 FT	Working Pressure	2000 PSI (140 bar)
Working Pressure Range	2000 to 2999 PSI ( 138 to 207 bar)	Series	55LT
Inch/Metric	Inch	Mating Fitting Series	55
Parker Division	Parflex	Inner Diameter	0.5 Inch
Parker Group	Fluid Connector	Hose Pressure Range	Medium
Distinct Properties	Low Tempurature	Specification	SAE 100R7
Material	Thermoplastic	Inner Diameter Inch/mm	Inch
