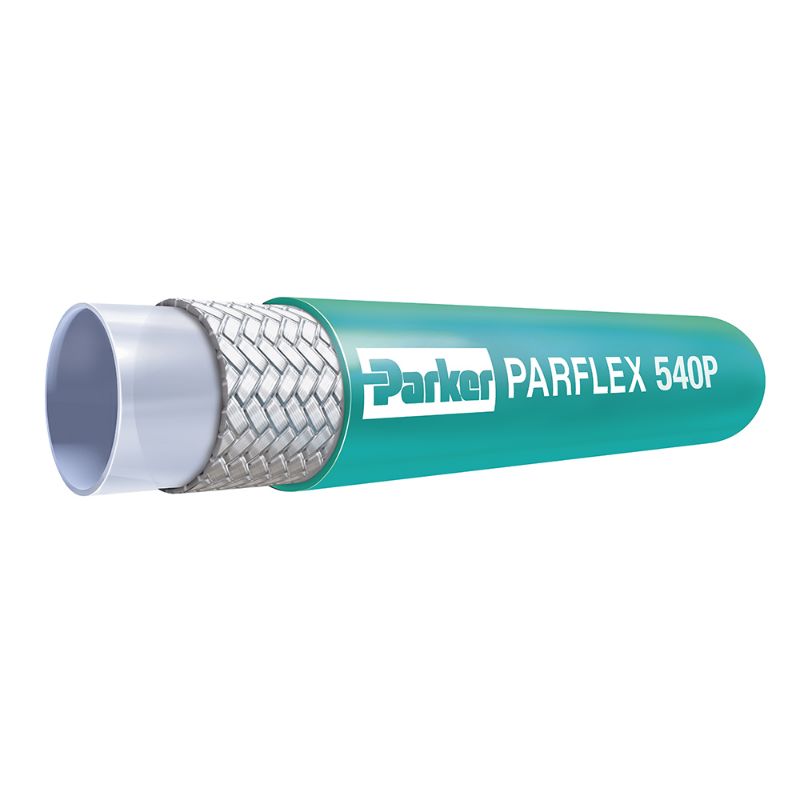

Parker 540P-4 - Water Transfer Hose - 540P

Parker's 540P has a FDA compliant polyethylene core tube. This hose was developed for specialty water applications such as potable water and has expanded into other applications including CO2 transfer and two part foam and insulation applications.

AFP Availability:	Quote Required
Partner Available:	1803 In Stock

Brand Parker

Part No. 540P-4

$5.52/each

Products specifications

Attribute name	Attribute value
Inside Diameter	0.250	Outside Diameter	0.500
Division	Parflex Division	Size	-4
Maximum Operating Temperature	150	Compatible Fitting	56 Series
Media	Chemicals - Check your fluid compatibility with our catalogue chart.	Hose Inner Tube Material	Polyethylene (PE)
Minimum Operating Temperature	-40	Design Factor	4:1
Application	Potable Water	Cover Material	Polyurethane
Hose Reinforcement Material	Fiber	Specifications Met	FDA 21 CFR 177
Minimum Bend Radius	1-1/4	Maximum Operating Pressure	2750
Weight	0.05	Hose Inside Diameter	1/4
