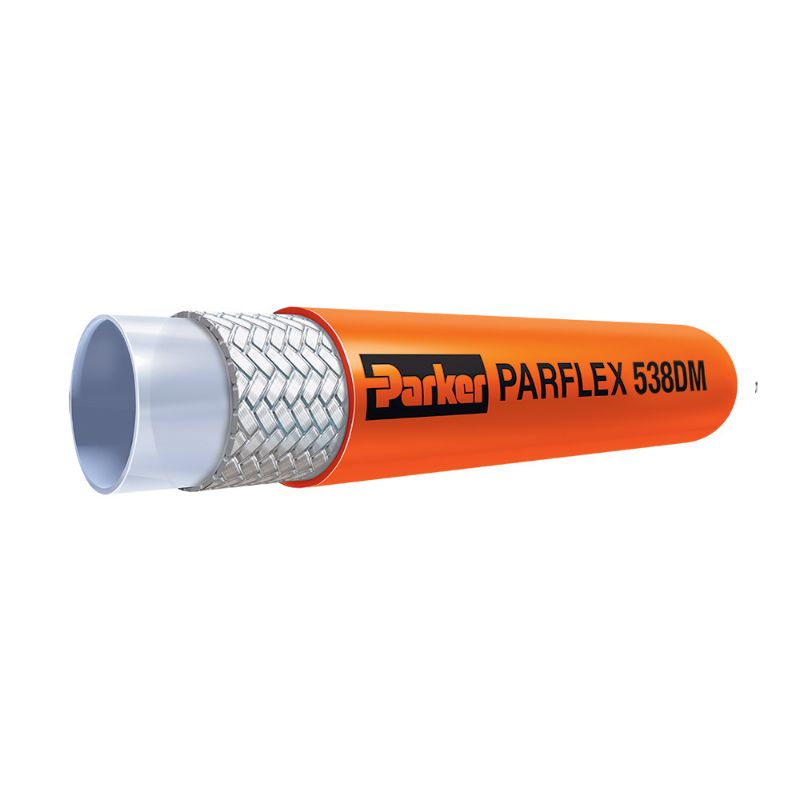

Picture of Parker 538DM-6 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 538DM-6 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM

Parker 100R18 compliant hose, 53DM/538DM low temperature hydraulic hose, features exceptional flexibility with temperatures as low as -70°F. Single or bonded hose assemblies.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 538DM-6
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionDesign Factor4:1
Size-6MediaWater
Weight0.16 kg/mInside Diameter3/8 inch
Maximum Operating Temperature212 °FMinimum Bend Radius2 inch
Maximum Operating Pressure20.7 MPaCompatible Fitting56 Series
Hose Reinforcement MaterialFiberHose Inner Tube MaterialCopolyester
ApplicationOver-the-SheaveMinimum Operating Temperature-57 °C
Cover MaterialCopolyesterOutside Diameter16.7 mm
Specifications MetSAE 100R18Hose I.D. (inch)3/8
Hose StyleNon-Conductive, Single
