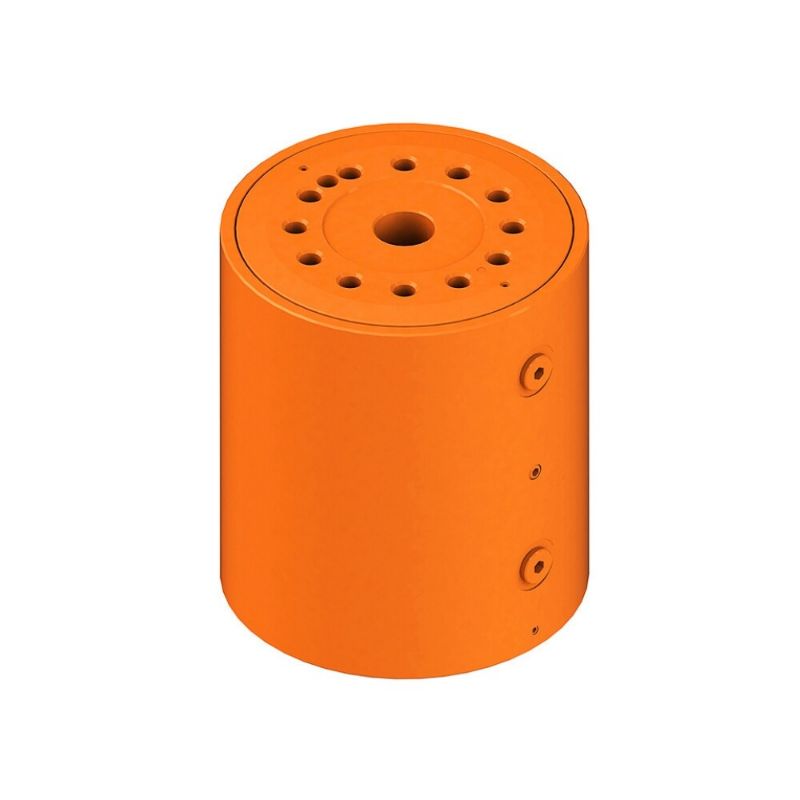

Parker 53702 - Helical Hydraulic Rotary Actuator - Helac L10-Series

The Helac L10 Series is the smallest and most compact helical rotary actuator. Ideal for applications where space is a premium, the ultra-compact L10 Series features extremely high thrust capacity and high shock resistance with 180° or 360° rotation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 53702

$4,616.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Helac
Industry	Hydraulic	Product Series	L10 Series
Width	Varies See Catalog for Dimensions	Rotation Angle	180
Axial Load Capacity	11000	Division	Cylinder Division
Technology	Hydraulics	Height	Varies per Model. See Catalog for Specifications.
Drive Torque	15000	Radial Load Capacity	11000
Displacement	33.7 inch3 180° Rotation	Product Type	Helical
Application	Hydraulic	Division	Cylinder Division
Operating Pressure	3000	Length	Varies per Model. See Catalog for Specifications.
Holding Torque	50000	Torque Rating	15000
Cantilever Moment	80000	Weight	95 lbs (180° rotation)
Maximum Output Torque	3000	Maximum Operating Pressure	3000
Model Number	L10-15-E-RF-180-S1-C-H
