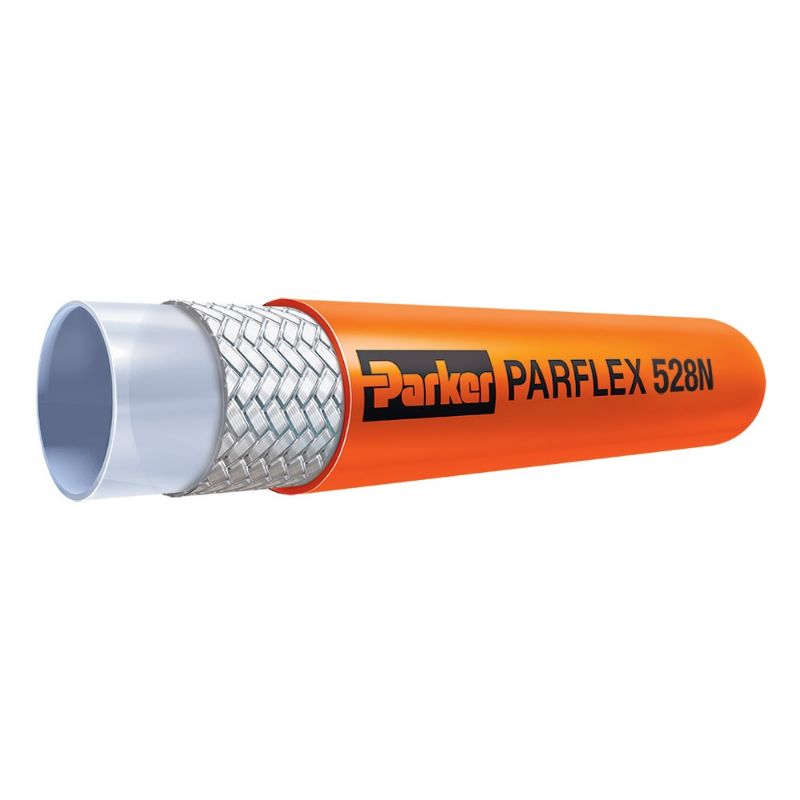

Picture of Parker 528N-3 - 100R8 Hydraulic Hose – 520N/528N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 528N-3 - 100R8 Hydraulic Hose – 520N/528N

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 528N-3
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTCompatible Fitting56 Series
MediaWaterMinimum Bend Radius38 mm
Specifications MetSAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.)Cover MaterialPolyurethane
Inside Diameter3/16 inchMaximum Operating Temperature212 °F
Outside Diameter0.430 inchDivisionParflex Division
Maximum Operating Pressure5000 psiDesign Factor4:1
Hose Reinforcement MaterialAramid FiberApplicationManufacturing
Hose Inner Tube MaterialPolyamide (PA)Size-3
Weight0.05 lb/ftMinimum Operating Temperature-40 °C
Product StyleNon-ConductiveHose I.D. (inch)3/16
Hose TypeNon Conductive
