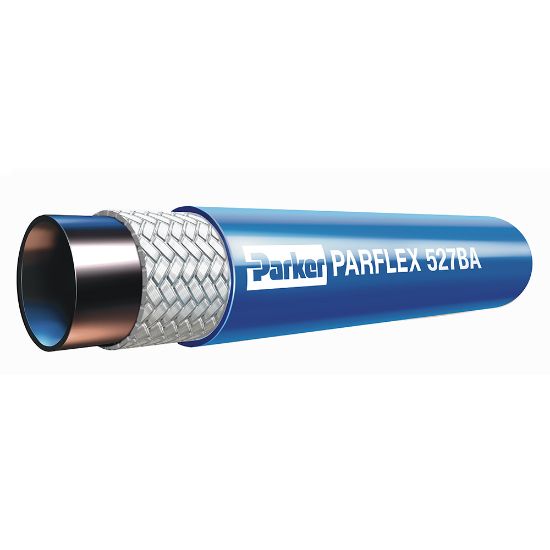

Parker 527BA-4 - Breathing Air Refill Hose - 527BA

Name: Parker 527BA-4 - Breathing Air Refill Hose - 527BA
SKU: 527BA-4
Price: 11.53 USD
Availability: InStock

Parkers’ Breathing Air Refill Hose is a 7,000 psi working pressure hose. It complies with CGA G7.1-1 Grade E Breathing Air Standards and NFPA 1901 requirements for Fire Apparatus.

AFP Availability:

302 In Stock

Jacksonville, FL	283
Norfolk, VA	19

Partner Available:

3128 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 527BA-4

$11.53/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inner Tube Material	Polyamide (PA)
Design Factor	4:1	Application	Pneumatics
Minimum Operating Temperature	-40 °C	Cover Material	Polyurethane
Specifications Met	CGA G7.1, Grade E (Breathing Air Standards)	Minimum Bend Radius	51 mm
Hose Reinforcement Material	Fiber	Weight	0.07 lb/ft
Maximum Operating Pressure	48.3 MPa	Outside Diameter	0.520 inch
Inside Diameter	1/4 inch	Maximum Operating Temperature	82 °C
Division	Parflex Division	Media	Air
Compatible Fitting	CG Series	Hose I.D. (inch)	1/4
