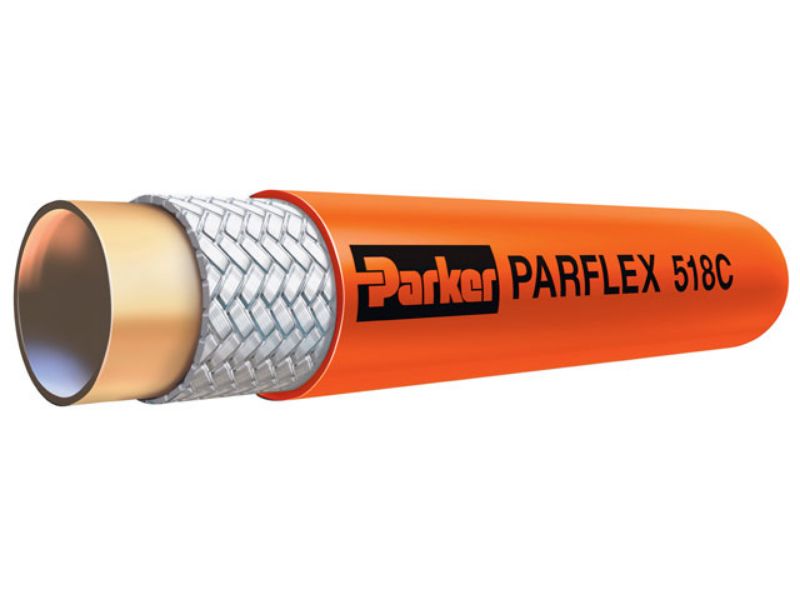

Parker 518C-4-4 - 518C Series

Name: Parker 518C-4-4 - 518C Series
SKU: 518C-4-4
Price: 6.86 USD
Availability: InStock

Medium Pressure Thermoplastic Non-conductive Hydraulic Hose

AFP Availability:

15 In Stock

West Knoxville, TN

Partner Available:

109 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 518C-4-4

$6.86/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Mating Fitting Series	55
UOM	FT	Inner Diameter	0.25 Inch
Material	Thermoplastic	Pkg Qty/UOM	250 FT
Working Pressure	3000 PSI (210 bar)	Pkg Qty	250
Distinct Properties	Non-conductive	Inner Diameter	0.25 Inch
Material	Thermoplastic	Inner Diameter Inch/mm	Inch
Parker Division	Parflex	Inch/Metric	Inch
Mating Fitting Series	55	Application	Hydraulic
Series	518C	Hose Pressure Range	Medium
Parker Group	Fluid Connector	Specification	SAE 100R7
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)
