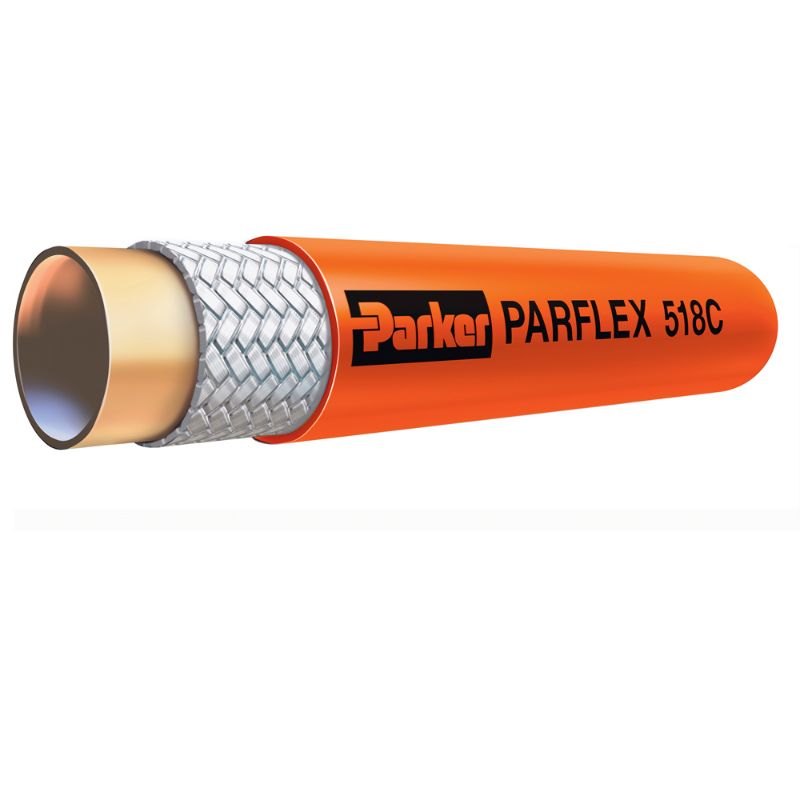

Parker 518C-2 - Non-Conductive Thermoplastic Hoses - 518D

Name: Parker 518C-2 - Non-Conductive Thermoplastic Hoses - 518D
SKU: 518C-2
Price: 3.68 USD
Availability: InStock

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.

Availability:

12 In Stock

Mooresville, NC

Partner Available:

444 In Stock

Brand Parker

Part No. 518C-2

$3.68

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Petroleum Hydraulic Fluids
Division	Parflex Division	Hose Inner Tube Material	Copolyester
Compatible Fitting	51R Series	Design Factor	4:1
Specifications Met	ANSI A92.2	Outside Diameter	0.340
Maximum Operating Temperature	212	Application	Hydraulics
Inside Diameter	1/8	Hose Reinforcement Material	Fiber
Weight	0.03	Minimum Operating Temperature	-40
Minimum Bend Radius	1/2	Size	-2
Cover Material	Polyurethane	Maximum Operating Pressure	2500
Hose I.D. (inch)	1/8	Material - Hose Inner Tube	OBSOLETE: Copolyester
