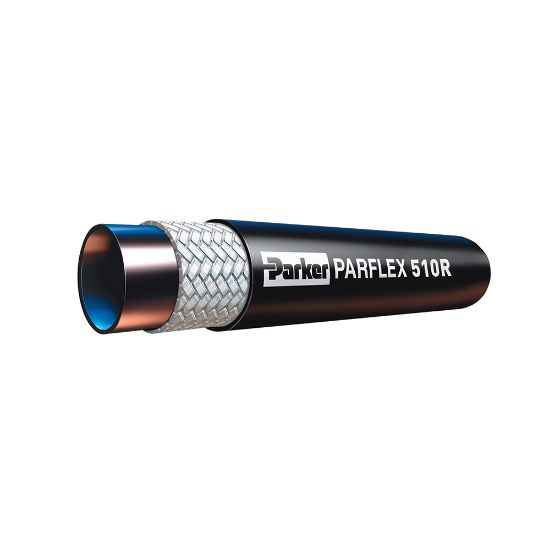

Parker 510R-4 - 100R7 Refrigerant Hose - 510R

Parflex 510R hose is a nylon core refrigerant hose compatible with common compressor oils and refrigeration media.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 510R-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Outside Diameter	0.460 inch	Inside Diameter	1/4 inch
Maximum Operating Temperature	250 °F	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Minimum Bend Radius	2-1/2 inch	Weight	0.05 lb/ft
Media	Coolants	Design Factor	4
Application	Refrigeration	Cover Material	Nylon Blend
Specifications Met	SAE 100R7, ANSI/UL 207 and ANSI/UL 1963 listed with 56-series fittings	Maximum Operating Pressure	19 MPa
