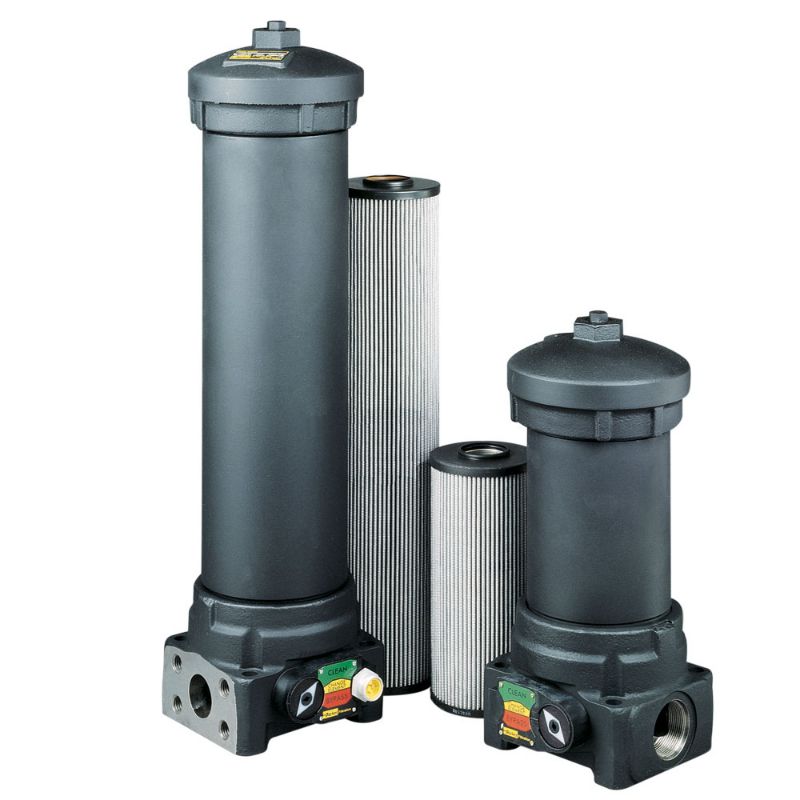

Parker 50P105QEL50PP1 - High Pressure Inline/Reverse Flow Filter 50P Series

Parker 50P High Pressure Filter Series is fully customizable with reverse flow capability to meet any system needs. Meeting SAE HF4 Automotive Standards. Max allowable operating pressure 5000 PSI/344.8 BAR and flow rates to 130GPM/492 LPM.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50P105QEL50PP1

$1,076.81

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Product Type	Hydraulic Filter	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Filter Element Type	05Q Microglass	Maximum Operating Temperature	225.0
Product Style	Hydraulic Filter	Mounting Style	Inline
Weight	56	Flow Rate	80.0
Port Type	SAE-24 straight thread	Indicator Type	electrical indicator with wire leads and conduit connection, left side
Pressure Rating	5000	Housing Material	ductile iron
Compatible Element	932669Q	Seal Material	Nitrile
Options	None	Filter Element Type	05Q Microglass
Bypass Valve Pressure Rating	50 psi (3.4 bar)	Flow Rate	80 gpm (303 lpm)
Indicator Type	electrical indicator with wire leads and conduit connection, left side	Port Connection Type	SAE-24 straight thread
Indicator Pressure Setting	42 psid (2.9 bar)
