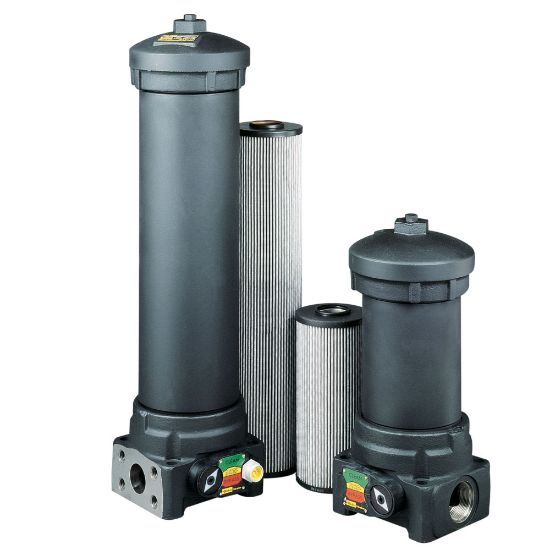

Parker 50P102QD90XX1 - High Pressure Inline/Reverse Flow Filter 50P Series

Parker 50P High Pressure Filter Series is fully customizable with reverse flow capability to meet any system needs. Meeting SAE HF4 Automotive Standards. Max allowable operating pressure 5000 PSI/344.8 BAR and flow rates to 130GPM/492 LPM.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50P102QD90XX1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	02Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Maximum Operating Temperature	107.0 °C	Product Style	Hydraulic Filter
Mounting Style	Inline	Weight	25.4 kg
Flow Rate	80.0 Gal/min	Port Type	1⅜ manifold ports on bottom of filter base
Indicator Type	electrical, 3-pin male quick disconnect, right side	Pressure Rating	344 bar
Housing Material	ductile iron	Compatible Element	932668Q
Seal Material	Nitrile	Options	None
Filter Element Type	02Q Microglass	Flow Rate	80 gpm (303 lpm)
Indicator Type	electrical, 3-pin male quick disconnect, right side	Port Connection Type	1⅜ manifold ports on bottom of filter base
Bypass Valve Pressure Rating	90 psi (6.2 bar)	Indicator Pressure Setting	81 psid (5.6 bar)
