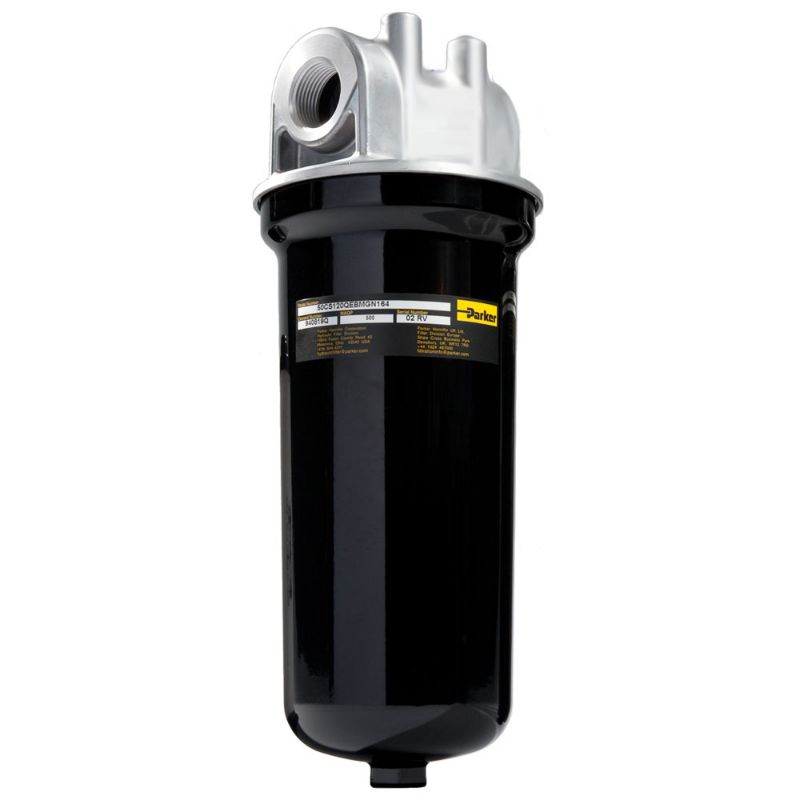

Parker 50CS110QEBNGN201 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50CS110QEBNGN201

$322.19/each

Products specifications

Attribute name	Attribute value
UOM	EA	Bypass Valve Pressure Rating	1.7 bar
Product Type	Hydraulic Filter	Housing Material	Aluminum
Product Style	Hydraulic Filter	Port Type	1-1/4" NPT integral threads
Flow Rate	208.0 L/min	Seal Material	Nitrile
Weight	6 lb	Compatible Element	940818Q
Pressure Rating	500 psi	Filter Element Type	Coreless
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Mounting Style	Inline
Maximum Operating Temperature	107.0 °C	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Indicator Pressure Setting	25.0 psid	Indicator Type	No indicator
Options	No options	Micron Rating	10Q Microglass
Seal Material	Nitrile	Options	No options
Indicator Type	No indicator	Micron Rating	10Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Flow Rate	55 GPM (208 LPM)
Port Connection Type	1-1/4" NPT integral threads
